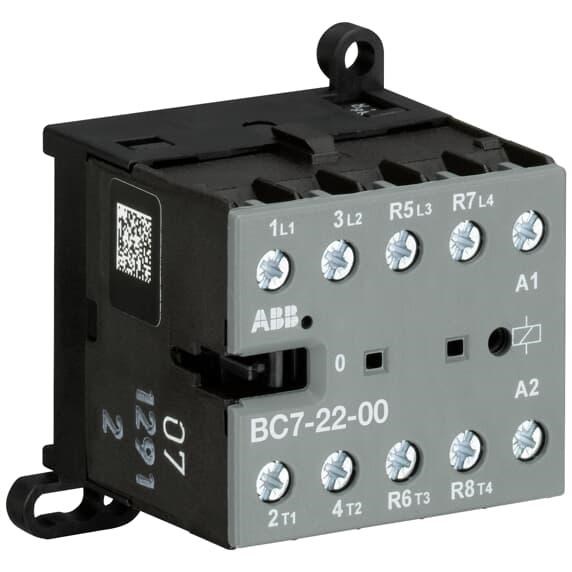

ABB BC7220001 Mini Contactor 4P 5.5A 6kW 24VAC Screw DIN Rail Wall Mount

Product Code: BC7220001

  • Compact mini contactor for efficient use
  • Operates at 24 VAC, 5.5 A current
  • Rated power up to 6 kW
  • IP20 protection with screw terminals
  • Versatile DIN rail or wall mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
24V DC
Rated Operational Current AC-1 <= 440V (Ie)
20A
Rated Operational Current AC-1 <= 690V (Ie)
0.25
Rated Operational Current AC-3 400V (Ie)
0
Rated Operational Current AC-3 690V (Ie)
3.5A
Rated Operational Power AC-3 400V (Pe)
5.5kW
Rated Operational Power AC-3 690V (Pe)
3kW
Rated Frequency
DC; 50/60Hz main circuit
No. of Poles
4P

Dimensions & Physical Data

Depth
46.7mm
Height
57.5mm
Weight
0.175kg
Width
52.5mm

Environmental

Ambient Temperature
-25°C to 55°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1IEC 60335-2-40 (A2L applications)

Documents

IPD Product Catalogue V17
