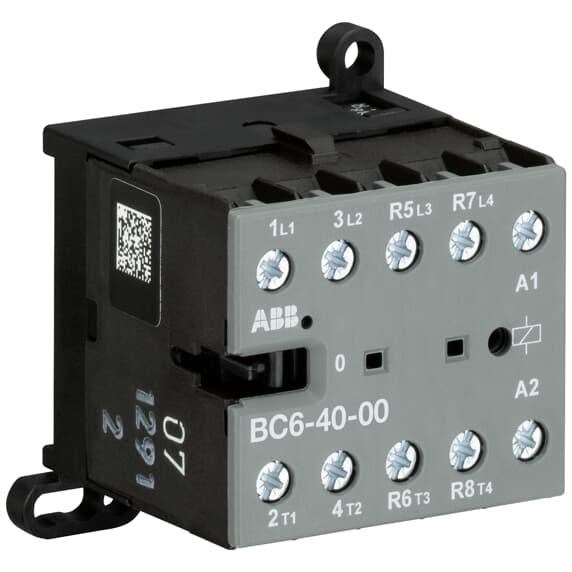

ABB BC6400001 Mini Contactor 4P 6A 6kW 220-240VAC Screw DIN Rail Wall Mount

Product Code: BC6400001

  • Compact 4NO contactor for versatile use
  • Rated for 220-240 VAC, 6 A operations
  • Fits DIN rail or wall mounting setups
  • Operates in -20 to 55°C temperature range
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
24V DC
Rated Operational Current AC-1 <= 440V (Ie)
20A
Rated Operational Current AC-1 <= 690V (Ie)
0.25
Rated Operational Current AC-3 400V (Ie)
0.375
Rated Operational Current AC-3 690V (Ie)
3.5A
Rated Operational Power AC-3 400V (Pe)
4kW
Rated Operational Power AC-3 690V (Pe)
3kW
Rated Frequency
DC; 50/60Hz main circuit
No. of Poles
4P

Dimensions & Physical Data

Depth
46.7mm
Height
57.5mm
Weight
0.175kg
Width
52.5mm

Environmental

Ambient Temperature
-20°C to 55°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1IEC 60335-2-40 (A2L applications)
