Specifications

Product Type

Mini Contactors

Brand

ABB

Rated Control Supply Voltage (Us) 24 V DC	Rated Operational Current AC-1 <= 440V (Ie) 20 A	Rated Operational Current AC-1 <= 690V (Ie) 0.25
Rated Operational Current AC-3 400V (Ie) 0.375	Rated Operational Current AC-3 690V (Ie) 3.5 A	Rated Operational Power AC-3 400V (Pe) 4 kW
Rated Operational Power AC-3 690V (Pe) 3 kW	Rated Frequency DC; 50/60 Hz main circuit	No. of Poles 3P

Depth 46.7 mm	Height 57.5 mm	Weight 0.175 kg
Width 52.5 mm

Ambient Temperature

-20 ... +55 °C

Standards and Approvals

IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1IEC 60335-2-40 (A2L applications)

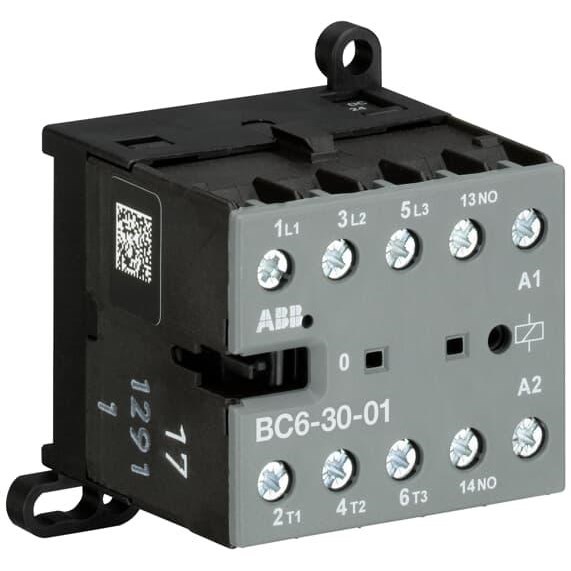

ABB BC6300101 Mini Contactor 3P 4A 6kW 220-240VAC Screw DIN Rail Wall Mount
