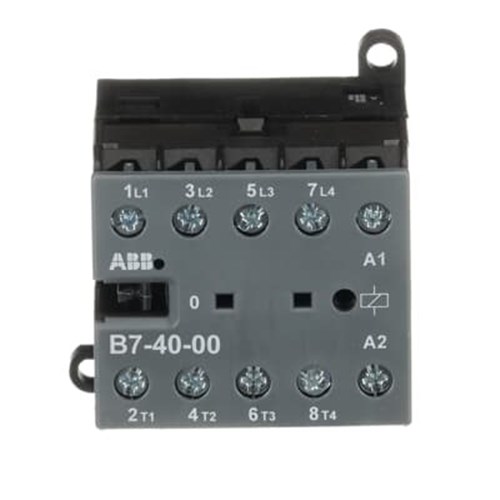

ABB B7400080 Contactor 4P 690/220VAC/DC Screw

Product Code: B7400080

  • Rated for 690/220 VAC/VDC applications
  • Offers IP20 protection rating
  • Supports -25 to 55°C operating temps
  • Complies with IEC and UL standards
  • Features screw terminal connections
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
220V to 240V AC
Rated Operational Current AC-1 <= 440V (Ie)
20A
Rated Operational Current AC-1 <= 690V (Ie)
0.25
Rated Operational Current AC-3 400V (Ie)
0
Rated Operational Current AC-3 690V (Ie)
3.5A
Rated Operational Power AC-3 400V (Pe)
5.5kW
Rated Operational Power AC-3 690V (Pe)
3kW
Rated Frequency
50/60Hz
No. of Poles
4P

Dimensions & Physical Data

Depth
46.7mm
Height
57.5mm
Weight
0.175kg
Width
52.5mm

Environmental

Ambient Temperature
-25°C to 55°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1IEC 60335-2-40 (A2L applications)
