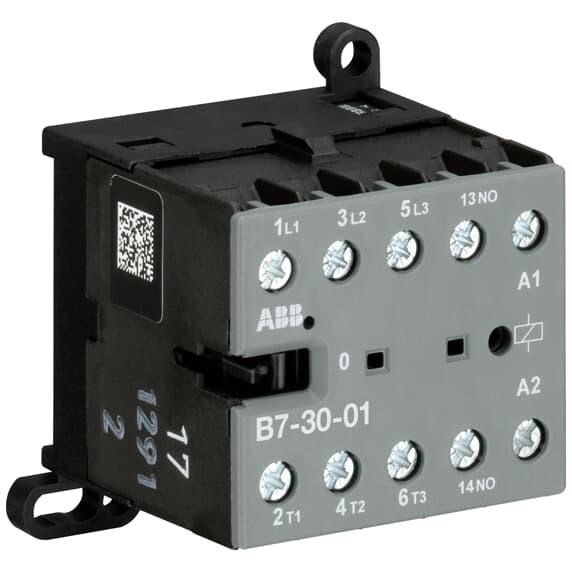

ABB B7300180 Mini Contactor 3P 5.5A 6kW 220-240VAC Screw DIN Rail Wall Mount

Product Code: B7300180

  • Compact mini contactor with 3NO contacts
  • Rated for 220-240 VAC, 5.5 A at 50/60 Hz
  • IP20 protection, DIN rail or wall mountable
  • Operates in temps from -25 to 55°C
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactors
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
220 ... 240 V AC
Rated Operational Current AC-1 <= 440V (Ie)
20 A
Rated Operational Current AC-1 <= 690V (Ie)
0.25
Rated Operational Current AC-3 400V (Ie)
0
Rated Operational Current AC-3 690V (Ie)
3.5 A
Rated Operational Power AC-3 400V (Pe)
5.5 kW
Rated Operational Power AC-3 690V (Pe)
3 kW
Rated Frequency
50/60 Hz
No. of Poles
3P

Dimensions & Physical Data

Depth
46.7 mm
Height
57.5 mm
Weight
0.175 kg
Width
52.5 mm

Environmental

Ambient Temperature
-25 ... +55 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1IEC 60335-2-40 (A2L applications)

Documents

IPD Product Catalogue V17
