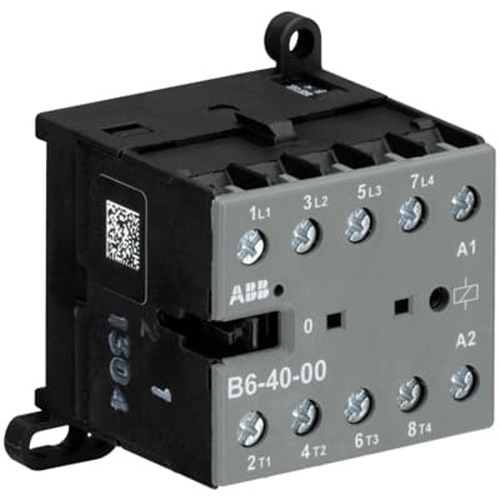

ABB B6400080 Contactor 4P 690/220VAC/DC Screw

Product Code: B6400080

  • Rated for 690/220 VAC/VDC, 50/60 Hz
  • IP20 protection rating
  • Contact config: 0NC+4NO
  • Operates in -20 to 55°C
  • Meets IEC, EN, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactors
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
220 ... 240 V AC
Rated Operational Current AC-1 <= 440V (Ie)
20 A
Rated Operational Current AC-1 <= 690V (Ie)
0.25
Rated Operational Current AC-3 400V (Ie)
0.375
Rated Operational Current AC-3 690V (Ie)
3.5 A
Rated Operational Power AC-3 400V (Pe)
4 kW
Rated Operational Power AC-3 690V (Pe)
3 kW
Rated Frequency
50/60 Hz
No. of Poles
4P

Dimensions & Physical Data

Depth
46.7 mm
Height
57.5 mm
Weight
0.175 kg
Width
52.5 mm

Environmental

Ambient Temperature
-20 ... +55 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1IEC 60335-2-40 (A2L applications)
