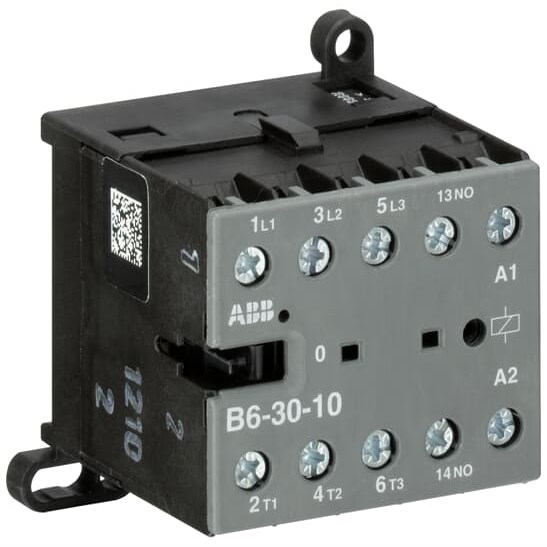

ABB B6301085 Mini Contactor 3P 16A 20A 6A 690VAC Main Circuit 220VDC Main Circuit

Product Code: B6301085

  • Compact design: 52.5mm width, 57.5mm height
  • Rated for up to 690 VAC & 220 VDC
  • Operates efficiently with only 1W power loss
  • IP20 protection for safe operation
  • Supports ambient temps from -25 to 55°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactors
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
380 ... 415 V AC
Rated Operational Current AC-1 <= 440V (Ie)
20 A
Rated Operational Current AC-1 <= 690V (Ie)
0.25
Rated Operational Current AC-3 400V (Ie)
0.375
Rated Operational Current AC-3 690V (Ie)
3.5 A
Rated Operational Power AC-3 400V (Pe)
4 kW
Rated Operational Power AC-3 690V (Pe)
3 kW
Rated Frequency
50/60 Hz
No. of Poles
3P

Dimensions & Physical Data

Depth
46.7 mm
Height
57.5 mm
Weight
0.175 kg
Width
52.5 mm

Environmental

Ambient Temperature
-25 ... +55 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1IEC 60335-2-40 (A2L applications)
