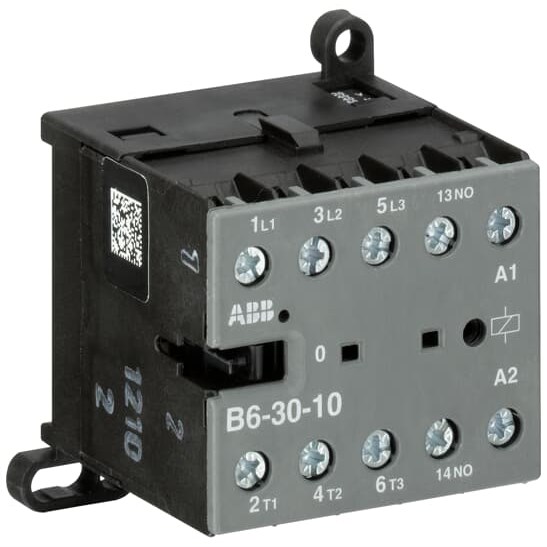

ABB B6301084 Mini Contactor 3P 16A 20A 6A 690VAC Main Circuit 220VDC Main Circuit

Product Code: B6301084

  • Compact mini contactor with 3NO contacts
  • Rated voltage up to 690 VAC, 220 VDC
  • Handles currents of 6 A, 16 A, and 20 A
  • IP20 protection for safe operation
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactors
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
110 ... 127 V AC
Rated Operational Current AC-1 <= 440V (Ie)
20 A
Rated Operational Current AC-1 <= 690V (Ie)
0.25
Rated Operational Current AC-3 400V (Ie)
0.375
Rated Operational Current AC-3 690V (Ie)
3.5 A
Rated Operational Power AC-3 400V (Pe)
4 kW
Rated Operational Power AC-3 690V (Pe)
3 kW
Rated Frequency
50/60 Hz
No. of Poles
3P

Dimensions & Physical Data

Depth
46.7 mm
Height
57.5 mm
Weight
0.175 kg
Width
52.5 mm

Environmental

Ambient Temperature
-25 ... +55 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1IEC 60335-2-40 (A2L applications)

Documents

IPD Product Catalogue V17
