Specifications

Product Type

Analog Timer

Brand

ABB

Series

Function Weekly	Contact Type Change-Over (CO)	Rated Operational Voltage (Ue) 230V
Accuracy Operating accuracy: ± 1 second/day at 23°C Switching accuracy: ± 35 minutes	Power Loss Total 0.5W	Minimum Switching Time 210 min
Max. Switching Power Incandescent Lamp or Halogen High Voltage Lamps 3000W Fluorescent Lamp 1200W Low Voltage Halogen Lamp 2000W Low Consumption Lamp (CFL) 900W LED 100W	Battery Life 30 year

Conductor Cross Section Solid Core

4mm²

Max. Load Capacity

Resistive Load 16 A Inductive Load 4 A

Depth 88mm	Height 66mm	Weight 0.109kg
Width 35mm	Width in No. of Modular Spacing 2

Storage Temperature

-20°C to 70°C

Operating Temperature

-10°C to 50°C

IP Rating

Housing IP20

No. of Channels

Standards and Approvals

REACH, RoHS, EN 60730-2-7, CE

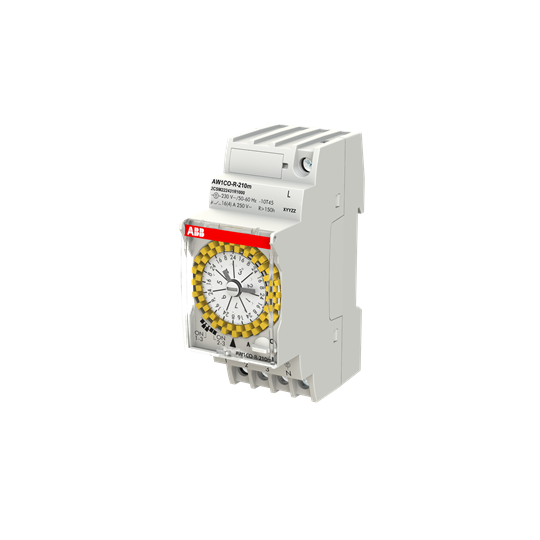

ABB AW1CO-R-210M Analog Time Switch W/Reserve 1CO 230V Captive Screw Terminal
