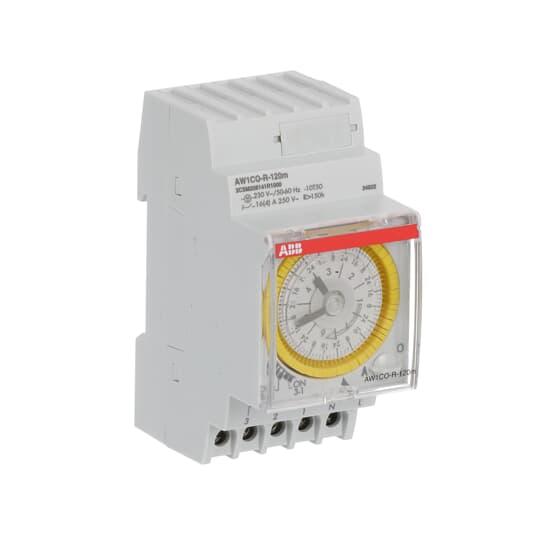

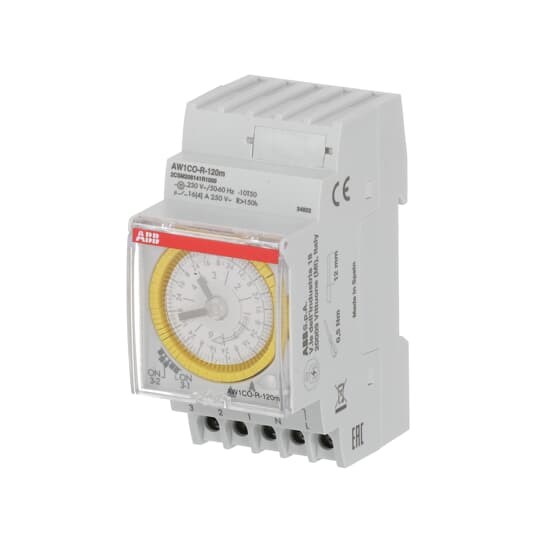

ABB AW1CO-R-120M Analog Time Switch W/Reserve 1CO 230V Captive Screw Terminal

Product Code: AW1CO-R-120M

  • Operates on 230 V with multiple power ratings
  • Supports both 50/60 Hz frequency
  • Weekly function with 120 min operating time
  • DIN rail mount with captive screw terminals
  • IP20 protection, suitable for indoor use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Timer
Brand
ABB
Series
AG

Electrical

Function
Weekly
Contact Type
Change-Over (CO)
Rated Operational Voltage (Ue)
230V
Accuracy
Operating accuracy: ± 1 second/day at 23°C Switching accuracy: ± 30 minutes
Power Loss
Total 0.5W
Minimum Switching Time
120 min
Max. Switching Power
4000W Incandescent Lamp or Halogen High Voltage Lamps 2500W Fluorescent Lamp 1200W Low Voltage Halogen Lamp 2000W Low Consumption Lamp (CFL) 2500W LED 900W
Battery Life
30 year

Mechanical

Conductor Cross Section Solid Core
4mm²
Max. Load Capacity
Resistive Load 16 A Inductive Load 4 A

Dimensions & Physical Data

Depth
88mm
Height
66mm
Weight
0.116kg
Width
44mm
Width in No. of Modular Spacing
2.5

Environmental

Storage Temperature
-20°C to 70°C
Operating Temperature
-10°C to 50°C
IP Rating
Housing IP20

Communication & Control

No. of Channels
1

Safety, Standards & Compliance

Standards and Approvals
REACH, RoHS, EN 60730-2-7, CE
