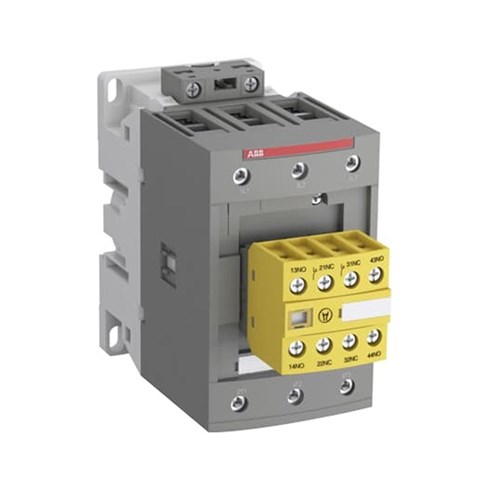

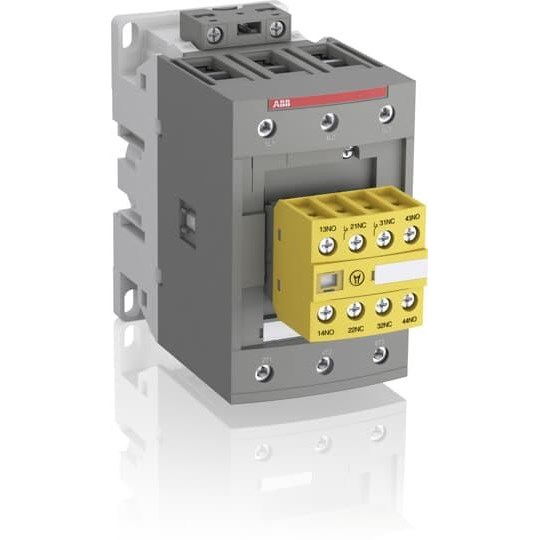

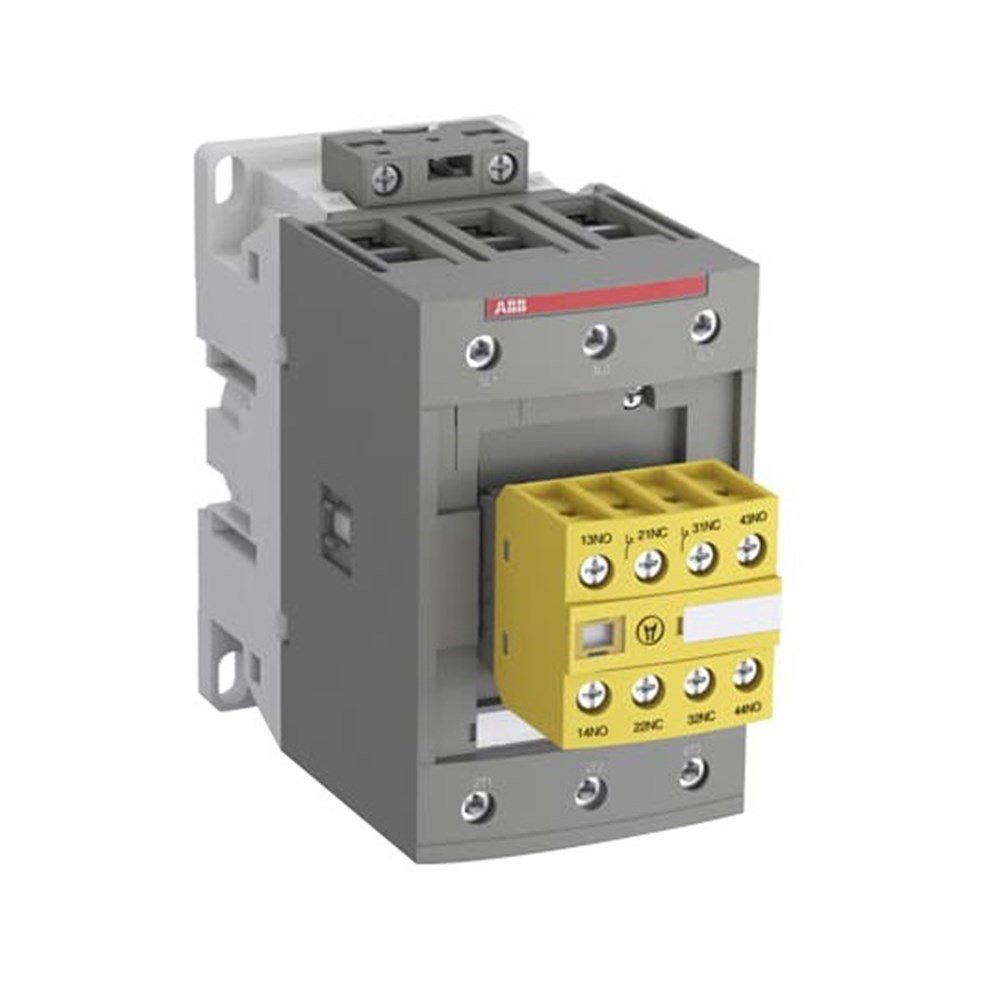

ABB AFS96302211 Safety Contactor 3P 96A 45kW 1000VAC 3NO+0NC

Product Code: AFS96302211

  • 1000 VAC, 96 A rated for robust performance
  • Compatible with both AC/DC operations
  • 3NO contact config for flexible use
  • Screw terminals ensure secure connections
  • DIN Rail or Panel mounting versatility
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactors
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
24 ... 60 VAC / 20 ... 60 VDC
Rated Operational Current AC-1 <= 690V (Ie)
130 A
Rated Operational Current AC-3 1000V (Ie)
30 A
Rated Operational Current AC-3 400V (Ie)
105 A
Rated Operational Current AC-3 690V (Ie)
57 A
Rated Operational Power AC-3 1000V (Pe)
40 kW
Rated Operational Power AC-3 400V (Pe)
45 kW
Rated Operational Power AC-3 690V (Pe)
55 kW
Rated Frequency
50 / 60 Hz
No. of Poles
3P
No. of Auxiliary Contacts
4

Dimensions & Physical Data

Depth
149 mm
Height
125.5 mm
Weight
1.22 kg
Width
70 mm

Environmental

Ambient Temperature
-40 ... 70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529

Documents

IPD Product Catalogue V17
