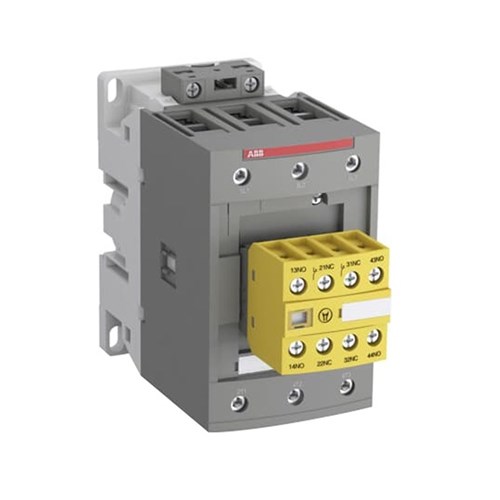

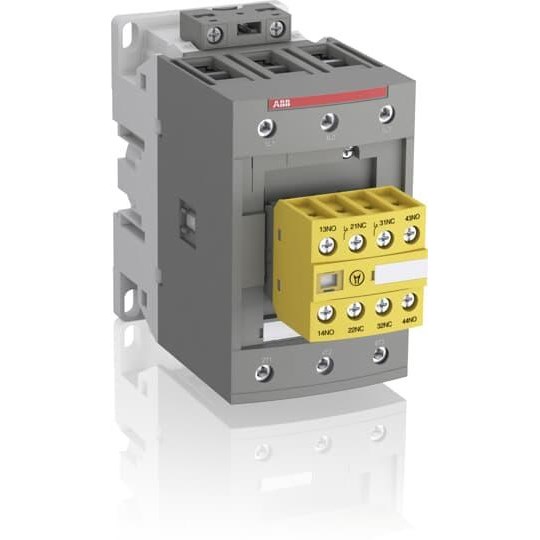

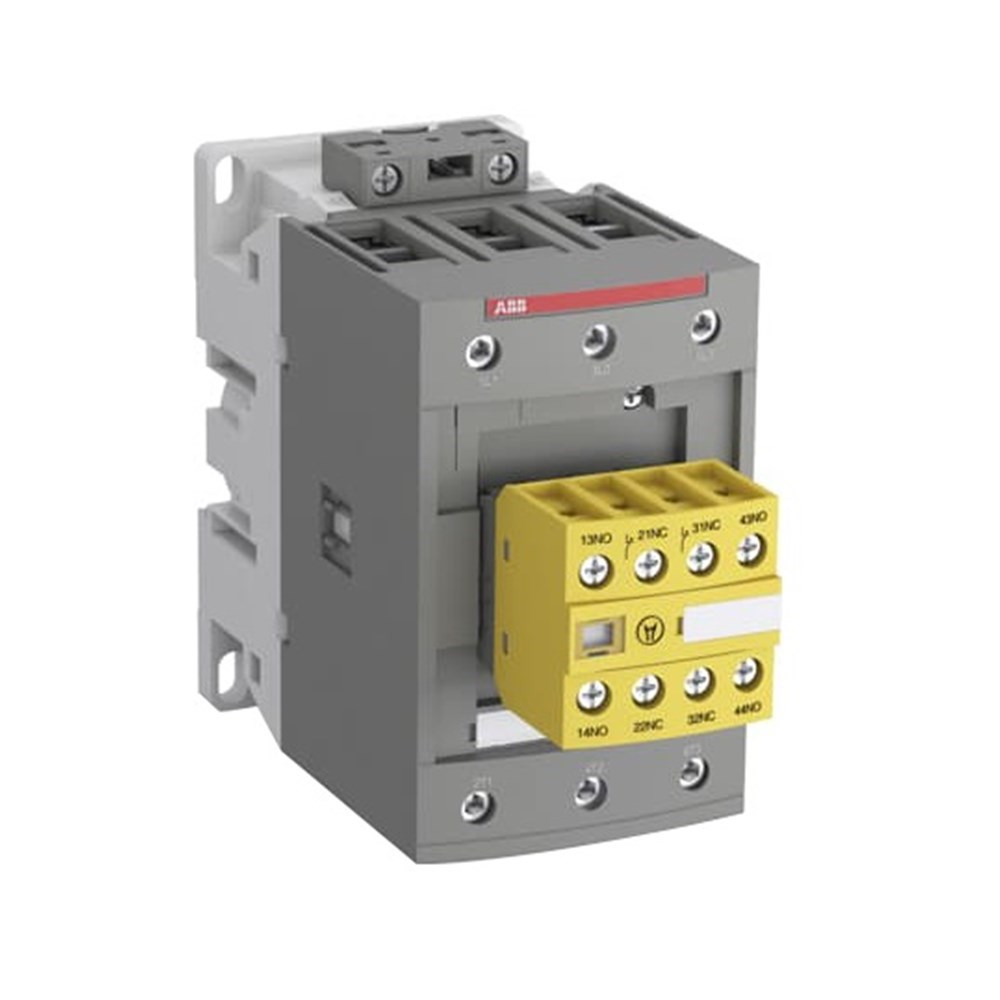

ABB AFS80302213 Safety Contactor 3P 80A 37kW 1000VAC 3NO+0NC

Product Code: AFS80302213

  • Suitable for 1000 VAC, 80 A applications
  • Operates at 50/60 Hz frequency
  • Supports DIN Rail and Panel mounting
  • Complies with IEC/EN and UL standards
  • Operates in extreme temperatures: -60 to 80°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
100V to 250V AC/DC
Rated Operational Current AC-1 <= 690V (Ie)
125A
Rated Operational Current AC-3 1000V (Ie)
25A
Rated Operational Current AC-3 400V (Ie)
80A
Rated Operational Current AC-3 690V (Ie)
49A
Rated Operational Power AC-3 400V (Pe)
37kW
Rated Operational Power AC-3 690V (Pe)
45kW
Rated Frequency
50/60Hz
No. of Poles
3P
No. of Auxiliary Contacts
4

Dimensions & Physical Data

Depth
149mm
Height
125.5mm
Weight
1.22kg
Width
70mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529
