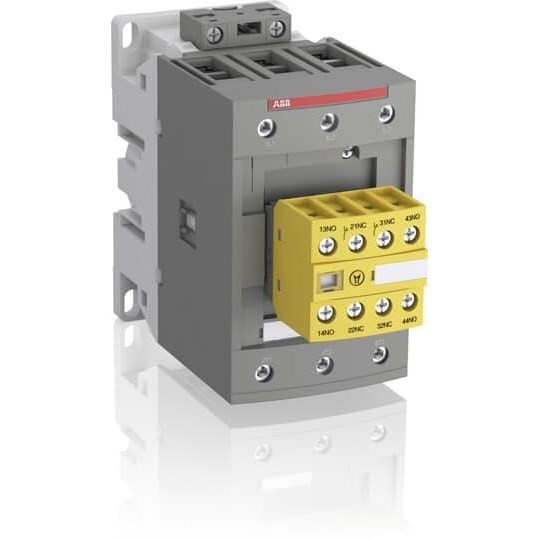

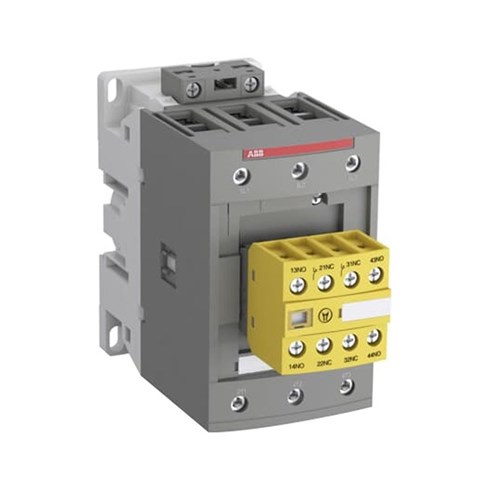

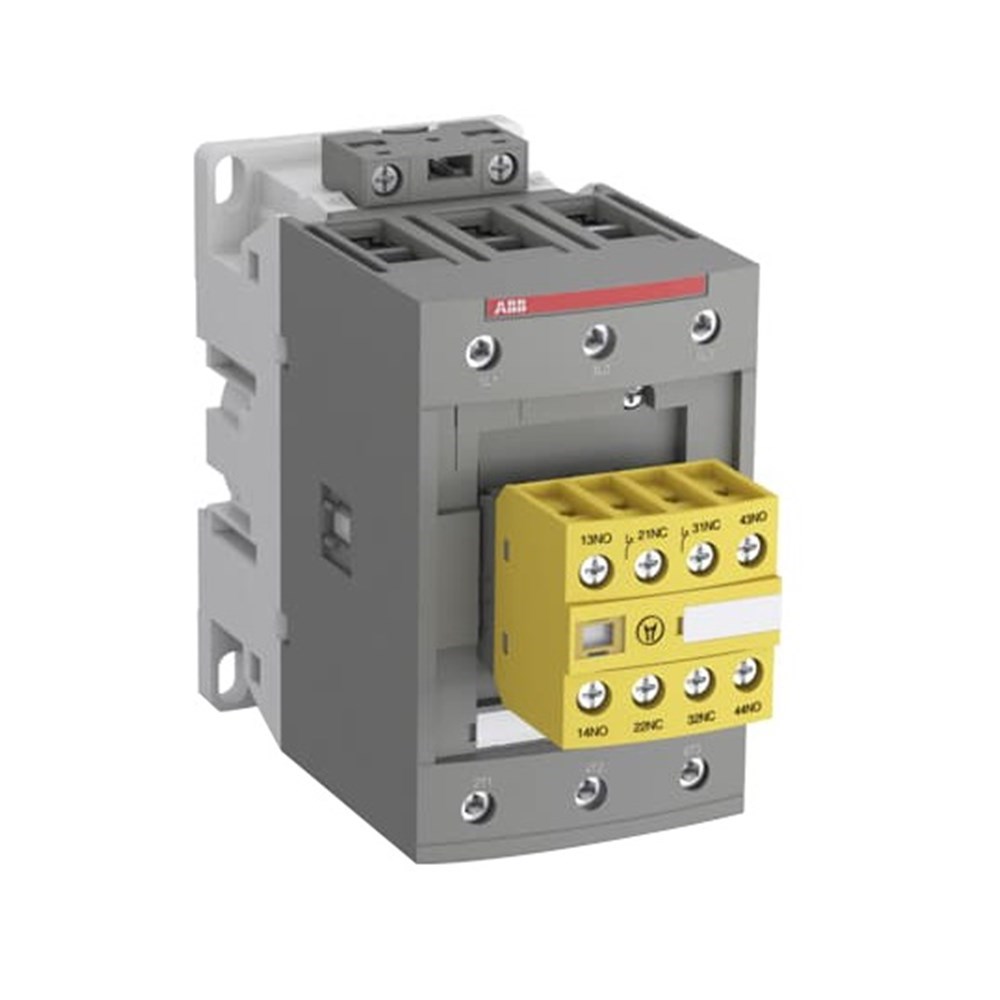

ABB AFS80302211 Safety Contactor 3P 80A 37kW 1000VAC 3NO+0NC

Product Code: AFS80302211

  • Supports 1000 VAC & 80 A
  • Operates at 50/60 Hz frequency
  • 3NO contact configuration
  • Screw terminal connection
  • DIN Rail or Panel mountable
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Contactor
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Control Supply Voltage (Us)
24-60 V AC / 20-60 V DC
Rated Operational Current AC-1 <= 690V (Ie)
(690 V) 40 °C 125 A
Rated Operational Current AC-3 1000V (Ie)
(1000 V) 60 °C 25 A
Rated Operational Current AC-3 400V (Ie)
(415 V) 60 °C 80 A
Rated Operational Current AC-3 690V (Ie)
(690 V) 60 °C 49 A
Rated Operational Power AC-3 400V (Pe)
(400 V) 37 kW
Rated Operational Power AC-3 690V (Pe)
(690 V) 45 kW
Rated Frequency
50/60 Hz
No. of Auxiliary Contacts (NO/NC)
2 NO + 2 NC

Dimensions & Physical Data

Depth
149 mm
Height
125.5 mm
Weight
1.27 kg
Width
70 mm

Environmental

Operating Temperature
-40 to 70 °C (Fitted with Thermal O/L Relay)

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22
