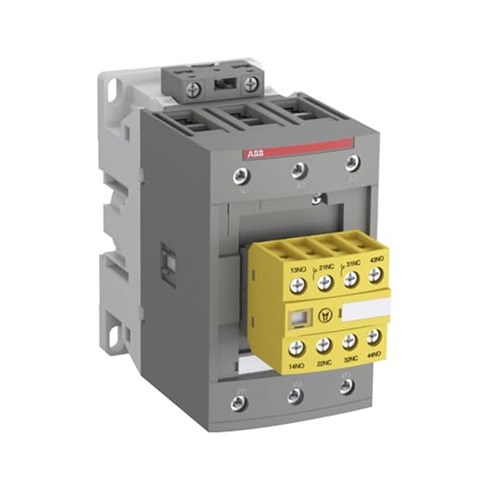

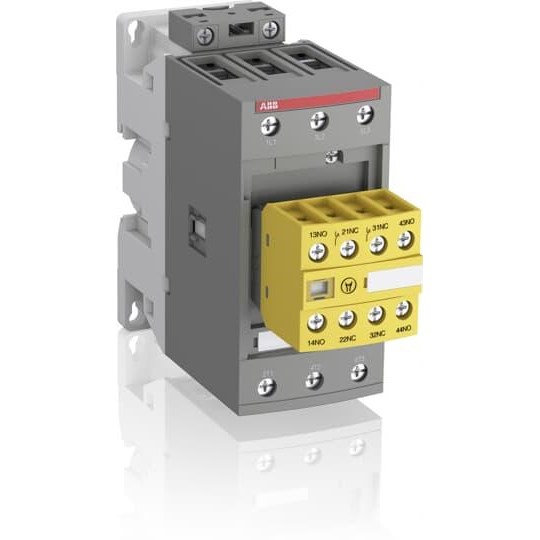

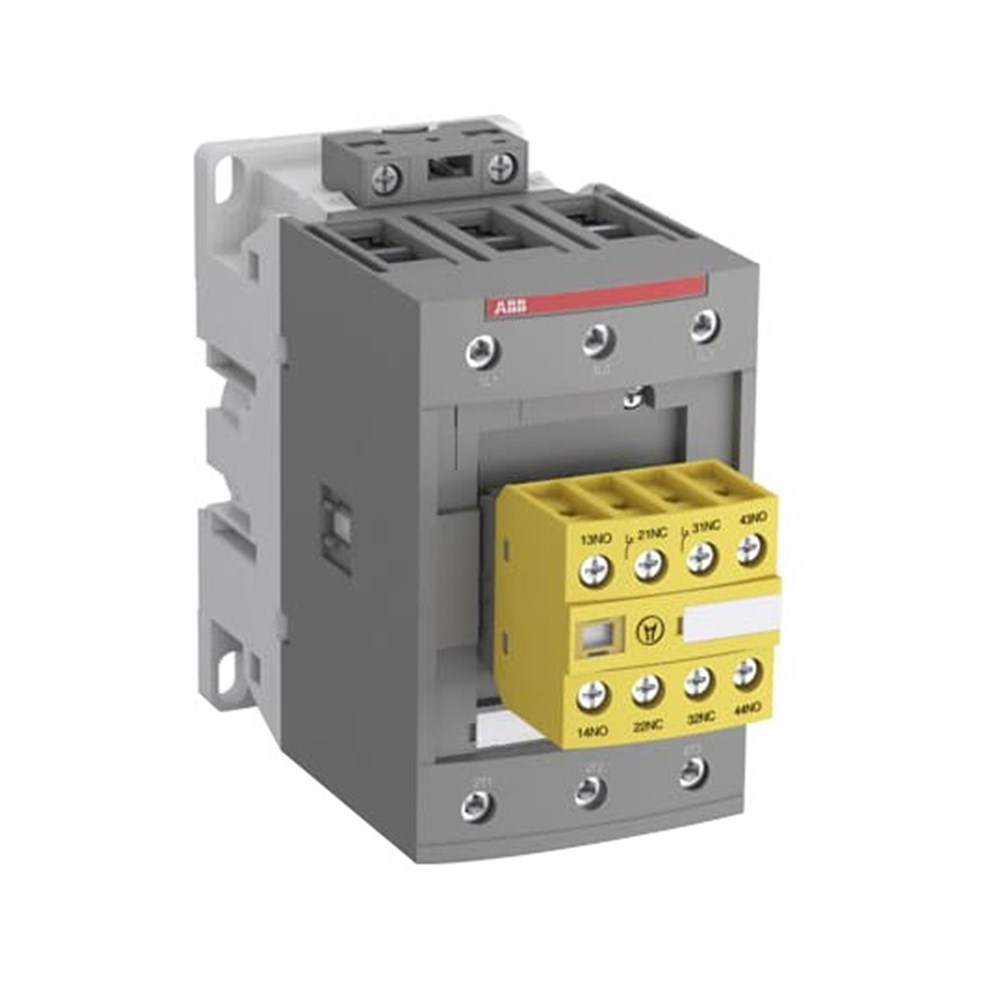

ABB AFS65302213 Safety Contactor 3P 65A 30kW 690VAC 3NO+0NC

Product Code: AFS65302213

  • Operates at 690 VAC, 65 A
  • Compatible with 50/60 Hz systems
  • Supports DIN Rail and Panel mount
  • Contact config: 3NO+0NC
  • IP10, IP20, IP40 protection levels
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactor
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Control Supply Voltage (Us)
100V to 250V AC/DC
Rated Operational Current AC-1 <= 690V (Ie)
(690V) 40 °C 105A
Rated Operational Current AC-3 400V (Ie)
(415V) 60 °C 65A
Rated Operational Current AC-3 690V (Ie)
(690V) 60 °C 39A
Rated Operational Power AC-3 400V (Pe)
(400V) 30kW
Rated Operational Power AC-3 690V (Pe)
(690V) 37kW
Rated Frequency
50/60Hz
No. of Auxiliary Contacts
2 NO + 2 NC

Dimensions & Physical Data

Depth
144mm
Height
125.5mm
Weight
1kg
Width
55mm

Environmental

Operating Temperature
-40 to 70 °C (Fitted with Thermal O/L Relay)

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22
