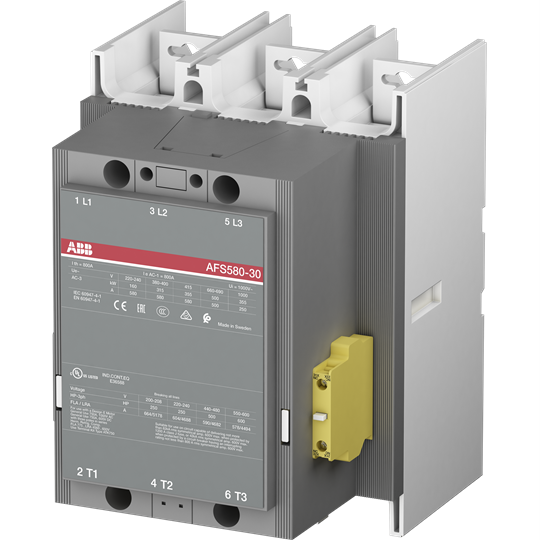

ABB AFS580301270 Safety Contactor 3P 580A 355kW 1000VAC 3NO

Product Code: AFS580301270

  • Handles 1000 VAC, 580 A for high power applications
  • Suitable for both AC/DC operation
  • IP20 protection against solid objects
  • Mounts on DIN Rail or Panel for versatility
  • Operates in temperatures from -40 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
100V to 250V AC/DC
Rated Operational Current AC-1 <= 690V (Ie)
800A
Rated Operational Current AC-1 1000V (Ie)
800A
Rated Operational Current AC-3 1000V (Ie)
250A
Rated Operational Current AC-3 400V (Ie)
580A
Rated Operational Current AC-3 690V (Ie)
500A
Rated Operational Power AC-3 1000V (Pe)
355kW
Rated Operational Power AC-3 400V (Pe)
315kW
Rated Operational Power AC-3 690V (Pe)
500kW
Rated Frequency
50/60Hz
No. of Poles
3P
No. of Auxiliary Contacts
3

Dimensions & Physical Data

Depth
242mm
Height
283mm
Weight
10kg
Width
210mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529
