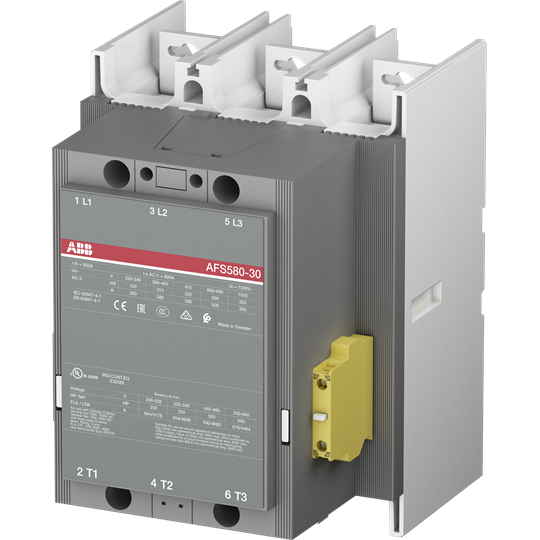

ABB AFS580301268 Safety Contactor 3P 580A 355kW 24-60VDC 3NO

Product Code: AFS580301268

  • Operates on 24-60 VDC and 50/60 Hz
  • Handles up to 580 A current
  • Rated power capacity of 355 kW
  • IP20 protection against solid objects
  • Suitable for DIN Rail or panel mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
24V to 60V DC
Rated Operational Current AC-1 <= 690V (Ie)
800A
Rated Operational Current AC-1 1000V (Ie)
800A
Rated Operational Current AC-3 1000V (Ie)
250A
Rated Operational Current AC-3 400V (Ie)
580A
Rated Operational Current AC-3 690V (Ie)
500A
Rated Operational Power AC-3 1000V (Pe)
355kW
Rated Operational Power AC-3 400V (Pe)
315kW
Rated Operational Power AC-3 690V (Pe)
500kW
Rated Frequency
50/60Hz
No. of Poles
3P
No. of Auxiliary Contacts
3

Dimensions & Physical Data

Depth
242mm
Height
283mm
Weight
10kg
Width
210mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529
