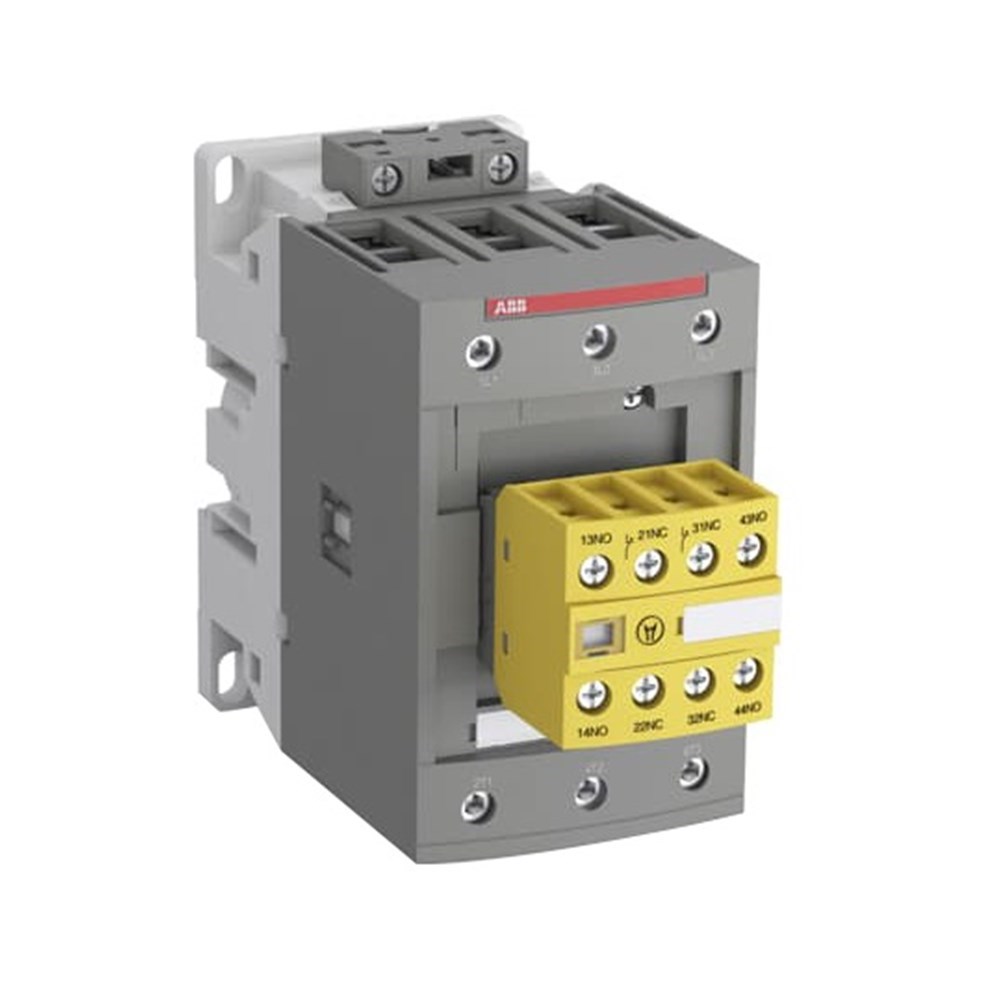

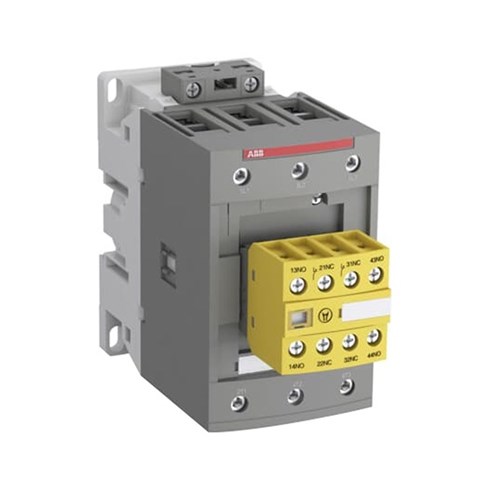

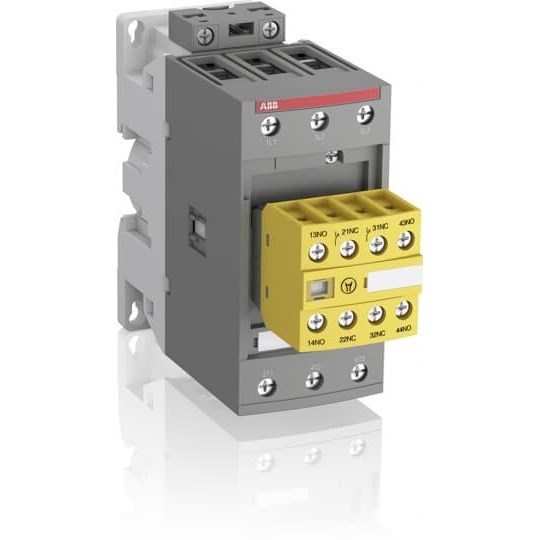

ABB AFS52302213 Safety Contactor 3P 53A 22kW 53A/22kW AC3 100-250VAC/DC Coil2NO +2NC

Product Code: AFS52302213

  • Operates at 690 VAC, 53 A
  • Supports both AC/DC operation
  • DIN Rail & Panel mounting options
  • Compact size: W55 x H125.5 x D144 mm
  • Withstands up to 6 kV impulse voltage
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactors
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
100 ... 250 VAC/DC
Rated Operational Current AC-1 <= 690V (Ie)
100 A
Rated Operational Current AC-3 400V (Ie)
53 A
Rated Operational Current AC-3 690V (Ie)
35 A
Rated Operational Power AC-3 400V (Pe)
22 kW
Rated Operational Power AC-3 690V (Pe)
30 kW
Rated Frequency
50 / 60 Hz
No. of Poles
3P
No. of Auxiliary Contacts
4

Dimensions & Physical Data

Depth
144 mm
Height
125.5 mm
Weight
1 kg
Width
55 mm

Environmental

Ambient Temperature
-40 ... 70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529
