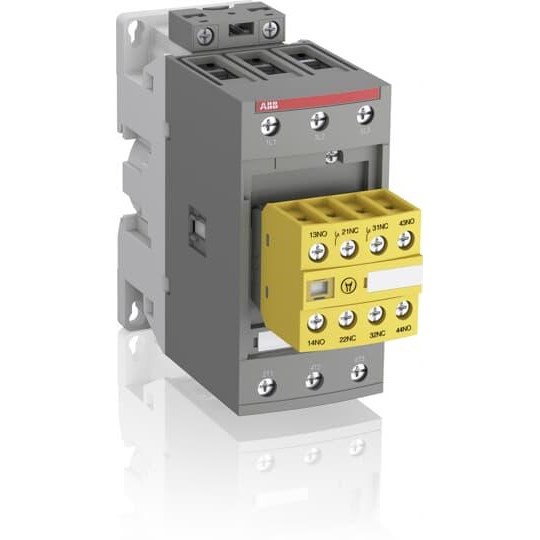

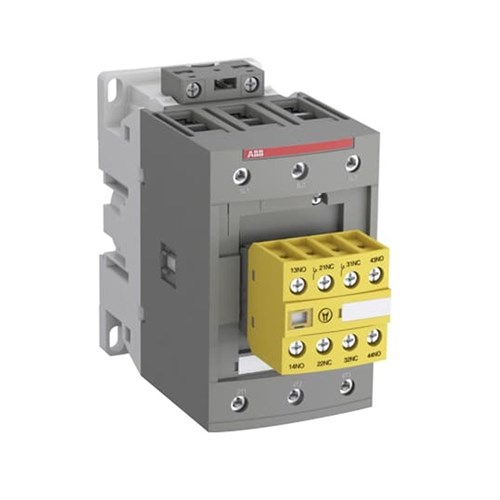

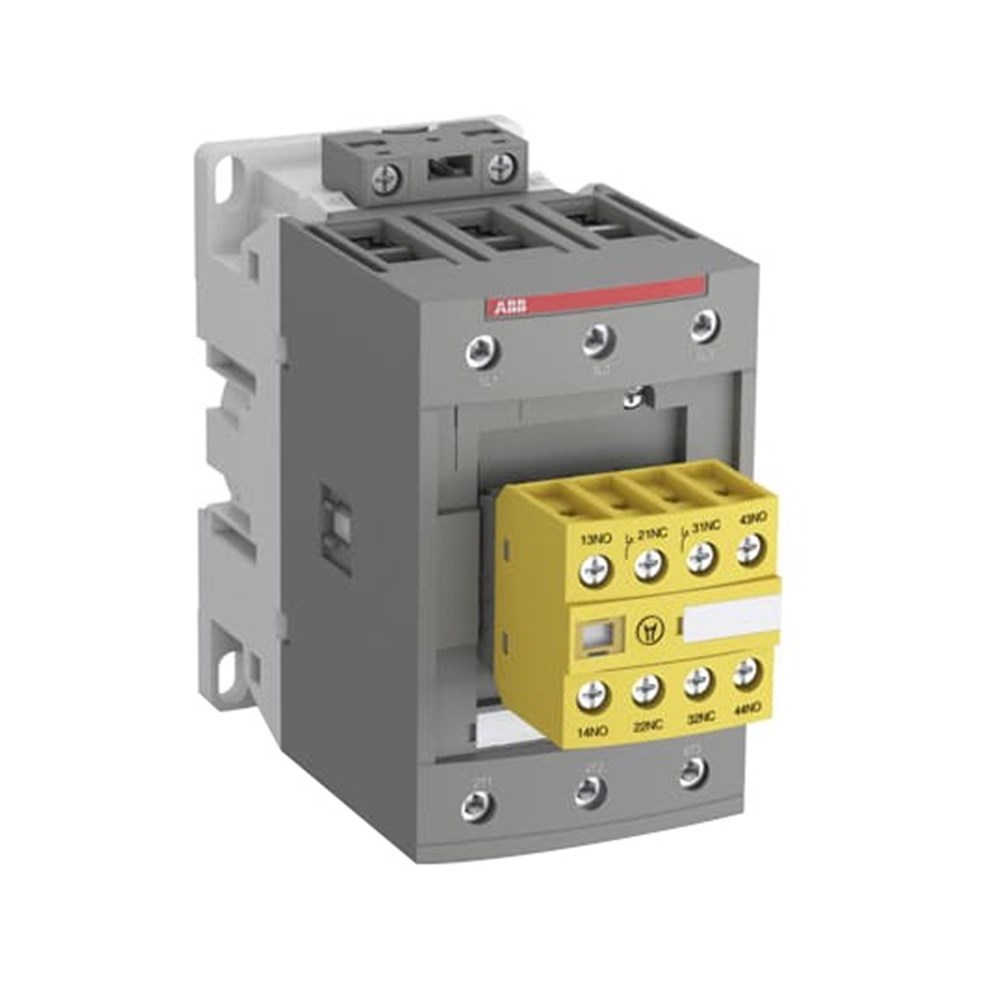

ABB AFS52302211 Safety Contactor 3P 53A 22kW 24-60VAC 20-60VDC 2NO +2NC

Product Code: AFS52302211

  • Supports up to 690 VAC and 53 A
  • Operates on 50/60 Hz frequency
  • Offers 3NO contact configuration
  • Compatible with DIN rail or panel mount
  • Handles power up to 22 kW
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Contactor
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Control Supply Voltage (Us)
24-60 V AC / 20-60 V DC
Rated Operational Current AC-1 <= 690V (Ie)
(690 V) 40 °C 100 A
Rated Operational Current AC-3 400V (Ie)
(415 V) 60 °C 53 A
Rated Operational Current AC-3 690V (Ie)
(690 V) 60 °C 35 A
Rated Operational Power AC-3 400V (Pe)
(400 V) 22 kW
Rated Operational Power AC-3 690V (Pe)
(690 V) 30 kW
Rated Frequency
50/60 Hz
No. of Auxiliary Contacts (NO/NC)
2 NO + 2 NC

Dimensions & Physical Data

Depth
144 mm
Height
125.5 mm
Weight
1.02 kg
Width
55 mm

Environmental

Operating Temperature
-40 to 70 °C (Fitted with Thermal O/L Relay)

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22
