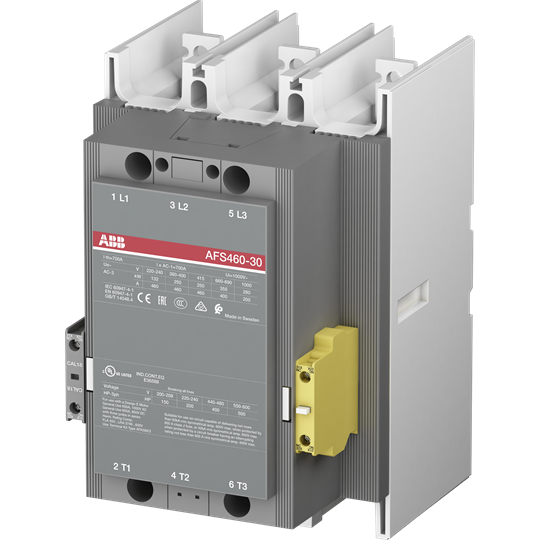

ABB AFS460301270 Safety Contactor 3P 460A 280kW 1000VAC 3NO

Product Code: AFS460301270

  • Handles up to 1000 VAC and 460 A
  • Suitable for both AC/DC operation
  • Compact design: 186x278x216 mm
  • IP20 protection for safe use
  • Mounts on DIN Rail or Panel
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactor
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Control Supply Voltage (Us)
100V to 250V AC/DC
Rated Operational Current AC-1 <= 690V (Ie)
(690V) 40 °C 700A
Rated Operational Current AC-1 1000V (Ie)
(1000V) 40 °C 700A
Rated Operational Current AC-3 1000V (Ie)
(1000V) 55 °C 200A
Rated Operational Current AC-3 400V (Ie)
(415V) 55 °C 460A
Rated Operational Current AC-3 690V (Ie)
(690V) 55 °C 400A
Rated Operational Power AC-3 1000V (Pe)
(1000V) 280kW
Rated Operational Power AC-3 400V (Pe)
(415V) 250kW
Rated Operational Power AC-3 690V (Pe)
(690V) 355kW
Rated Frequency
50/60Hz
No. of Auxiliary Contacts
1 NO + 2 NC

Dimensions & Physical Data

Depth
216mm
Height
278mm
Weight
10.6kg
Width
186mm

Environmental

Operating Temperature
-25 to 50 °C (Fitted with Thermal O/L Relay)

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-4-1
