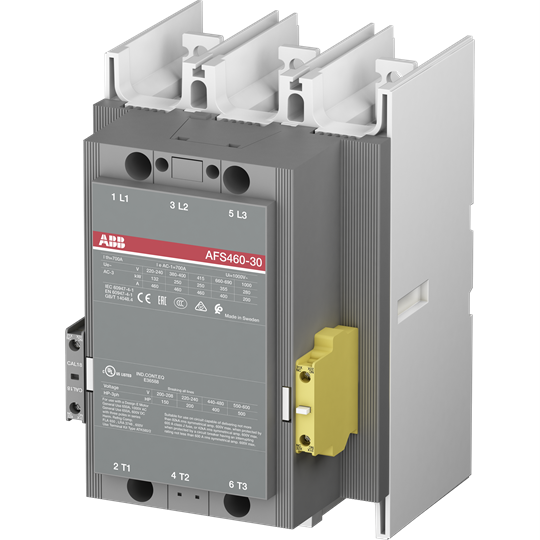

ABB AFS460301268 Safety Contactor 3P 460A 280kW 24-60VDC 3NO

Product Code: AFS460301268

  • Operates at 24-60 VDC, 50/60 Hz
  • Handles up to 460 A current
  • Rated power of 280 kW
  • IP20 protection rating
  • Mounts on DIN rail or panel
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
24V to 60V DC
Rated Operational Current AC-1 <= 690V (Ie)
700A
Rated Operational Current AC-1 1000V (Ie)
700A
Rated Operational Current AC-3 1000V (Ie)
200A
Rated Operational Current AC-3 400V (Ie)
460A
Rated Operational Current AC-3 690V (Ie)
400A
Rated Operational Power AC-3 1000V (Pe)
280kW
Rated Operational Power AC-3 400V (Pe)
250kW
Rated Operational Power AC-3 690V (Pe)
355kW
Rated Frequency
50/60Hz
No. of Poles
3P
No. of Auxiliary Contacts
3

Dimensions & Physical Data

Depth
216mm
Height
278mm
Weight
10.6kg
Width
186mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529
