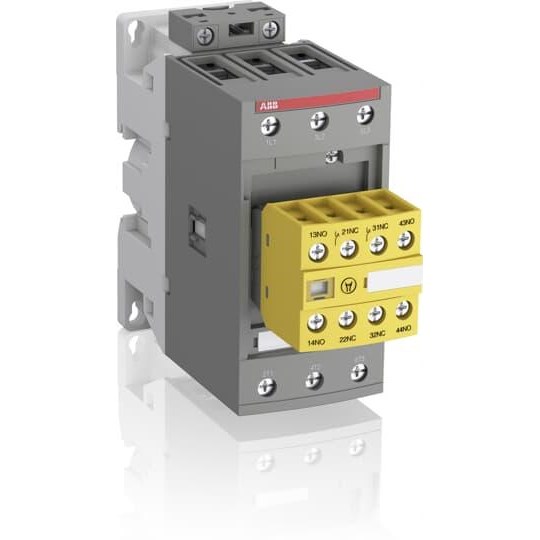

ABB AFS40302213 Safety Contactor 3P 40A 22kW 690VAC 3NO

Product Code: AFS40302213

  • Rated Voltage: 690 VAC, Current: 40 A
  • Contact Configuration: 3NO
  • Dual Mounting: DIN Rail or Panel
  • Screw Terminals for Secure Connection
  • Compact Size: W55 x H125.5 x D144 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
100V to 250V AC/DC
Rated Operational Current AC-1 <= 690V (Ie)
70A
Rated Operational Current AC-3 400V (Ie)
40A
Rated Operational Current AC-3 690V (Ie)
25A
Rated Operational Power AC-3 400V (Pe)
18.5kW
Rated Operational Power AC-3 690V (Pe)
22kW
Rated Frequency
50/60Hz
No. of Poles
3P
No. of Auxiliary Contacts
4

Dimensions & Physical Data

Depth
144mm
Height
125.5mm
Weight
1kg
Width
55mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529

Documents

IPD Product Catalogue V17
