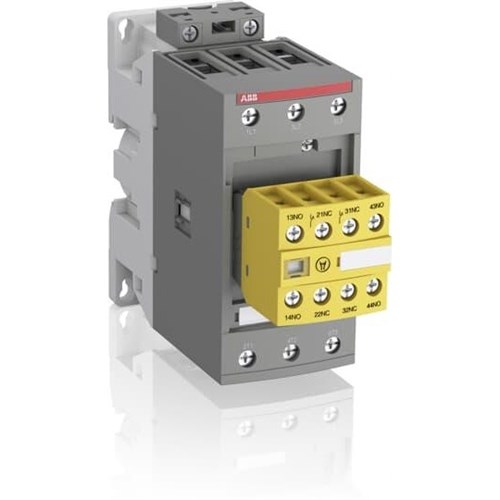

ABB AFS40302211 Safety Contactor 3P 40A 22kW 24-60VAC 3NO

Product Code: AFS40302211

  • Supports 24-60 VAC, 40 A
  • Operates at 50/60 Hz frequency
  • Withstands impulse voltage up to 6 kV
  • Features a 3NO contact configuration
  • DIN Rail or Panel mounting options available
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactors
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
24 ... 60 VAC / 20 ... 60 VDC
Rated Operational Current AC-1 <= 690V (Ie)
70 A
Rated Operational Current AC-3 400V (Ie)
40 A
Rated Operational Current AC-3 690V (Ie)
25 A
Rated Operational Power AC-3 400V (Pe)
18.5 kW
Rated Operational Power AC-3 690V (Pe)
22 kW
Rated Frequency
50 / 60 Hz
No. of Poles
3P
No. of Auxiliary Contacts
4

Dimensions & Physical Data

Depth
144 mm
Height
125.5 mm
Weight
1 kg
Width
55 mm

Environmental

Ambient Temperature
-40 ... 70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529
