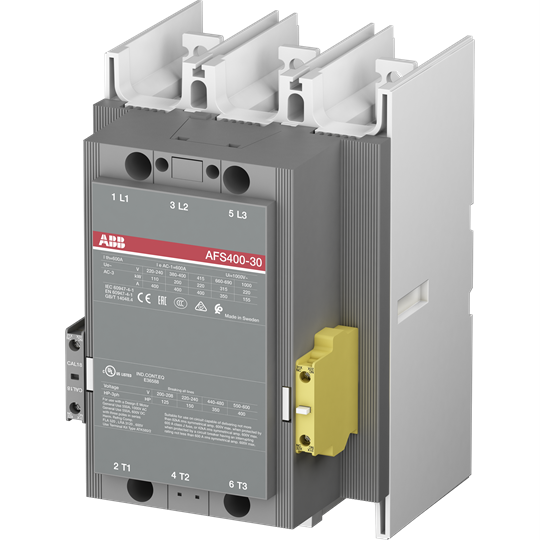

ABB AFS400301271 Safety Contactor 3P 1000V 3NO+0NC

Product Code: AFS400301271

  • Rated voltage up to 1000 V
  • 3NO contact configuration
  • Operates at -25 to 50°C
  • IP00, IP20 protection levels
  • Compact size: 186x278x216 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
250V to 500V AC/DC
Rated Operational Current AC-1 <= 690V (Ie)
600A
Rated Operational Current AC-1 1000V (Ie)
600A
Rated Operational Current AC-3 1000V (Ie)
155A
Rated Operational Current AC-3 400V (Ie)
400A
Rated Operational Current AC-3 690V (Ie)
350A
Rated Operational Power AC-3 1000V (Pe)
220kW
Rated Operational Power AC-3 400V (Pe)
200kW
Rated Operational Power AC-3 690V (Pe)
315kW
Rated Frequency
50/60Hz
No. of Poles
3P
No. of Auxiliary Contacts
3

Dimensions & Physical Data

Depth
216mm
Height
278mm
Weight
10.6kg
Width
186mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529

Documents

IPD Product Catalogue V17
