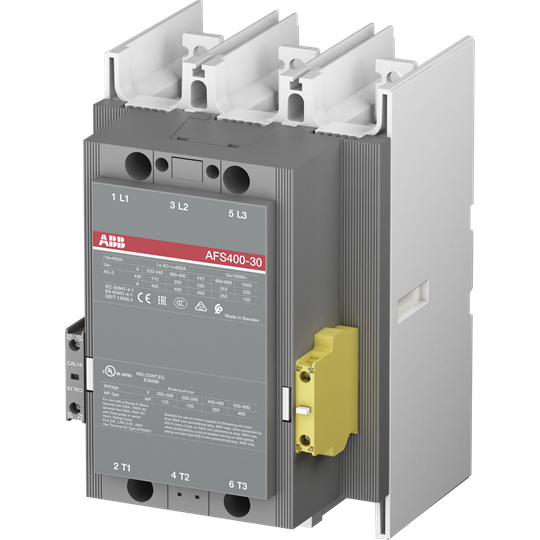

ABB AFS400301270 Safety Contactor 3P 400A 220kW 1000VAC 3NO

Product Code: AFS400301270

  • Supports 1000 VAC and 400 A
  • Operates on 50/60 Hz frequency
  • IP20 protection, DIN Rail/Panel mount
  • Handles up to 220 kW power
  • Operates in AC/DC modes
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactor
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Control Supply Voltage (Us)
100V to 250V AC/DC
Rated Operational Current AC-1 <= 690V (Ie)
(690V) 40 °C 600A
Rated Operational Current AC-1 1000V (Ie)
(1000V) 40 °C 600A
Rated Operational Current AC-3 1000V (Ie)
(1000V) 55 °C 155A
Rated Operational Current AC-3 400V (Ie)
(415V) 55 °C 400A
Rated Operational Current AC-3 690V (Ie)
(690V) 55 °C 350A
Rated Operational Power AC-3 1000V (Pe)
(1000V) 220kW
Rated Operational Power AC-3 400V (Pe)
(415V) 220kW
Rated Operational Power AC-3 690V (Pe)
(690V) 315kW
Rated Frequency
50/60Hz
No. of Auxiliary Contacts
1 NO + 2 NC

Dimensions & Physical Data

Depth
216mm
Height
278mm
Weight
10.6kg
Width
186mm

Environmental

Operating Temperature
-25 to 50 °C (Fitted with Thermal O/L Relay)

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-4-1
