Specifications

Product Type

Safety Contactors

Brand

ABB

Rated Control Supply Voltage (Us) 100 ... 250 VAC/DC	Rated Operational Current AC-1 <= 690V (Ie) 50 A	Rated Operational Current AC-3 400V (Ie) 38 A
Rated Operational Current AC-3 690V (Ie) 24 A	Rated Operational Power AC-3 400V (Pe) 18.5 kW	Rated Operational Power AC-3 690V (Pe) 22 kW
Rated Frequency 50 / 60 Hz	No. of Poles 3P	No. of Auxiliary Contacts 4

Depth 119.5 mm	Height 86 mm	Weight 0.36 kg
Width 45 mm

Ambient Temperature

-40 ... 70 °C

Standards and Approvals

IEC 60529, IEC 60947-1, EN 60529

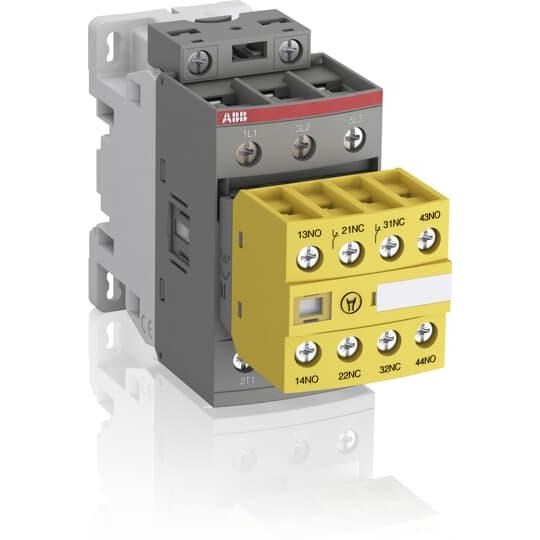

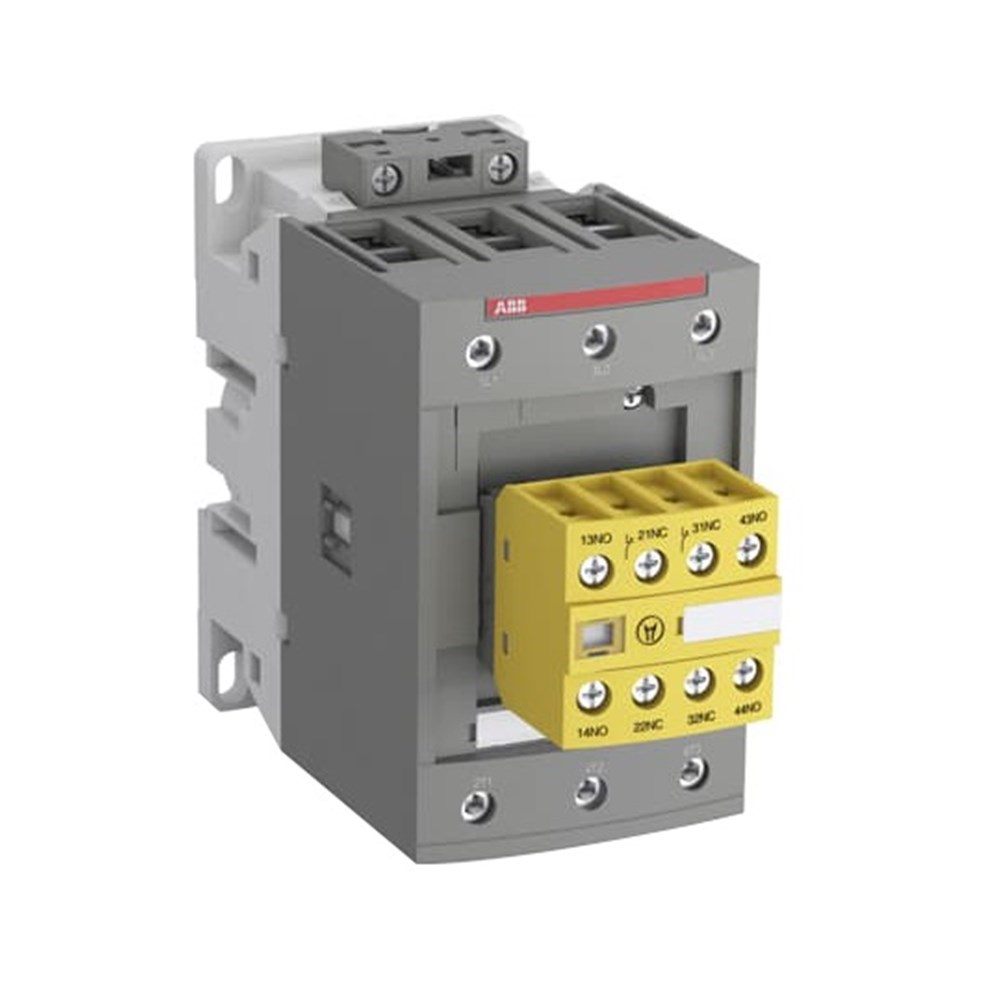

ABB AFS38302213 Safety Contactor 3P 38A 18.5kW 100-250VAC 2NO+2NC
