Specifications

Product Type

Contactor

Brand

ABB

No. of Poles (Total) 3P	Rated Control Supply Voltage (Us) 24-60 V AC / 20-60 V DC	Rated Operational Current AC-1 <= 690V (Ie) (690 V) 40 °C 50 A
Rated Operational Current AC-3 400V (Ie) (415 V) 60 °C 38 A	Rated Operational Current AC-3 690V (Ie) (690 V) 60 °C 24 A	Rated Operational Power AC-3 400V (Pe) (400 V) 18.5 kW
Rated Operational Power AC-3 690V (Pe) (690 V) 22 kW	Rated Frequency 50/60 Hz	No. of Auxiliary Contacts (NO/NC) 2 NO + 2 NC

Depth 119.5 mm	Height 86 mm	Weight 0.36 kg
Width 45 mm

Operating Temperature

-25 to 60 °C (Fitted with Thermal O/L Relay)

Standards and Approvals

IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1

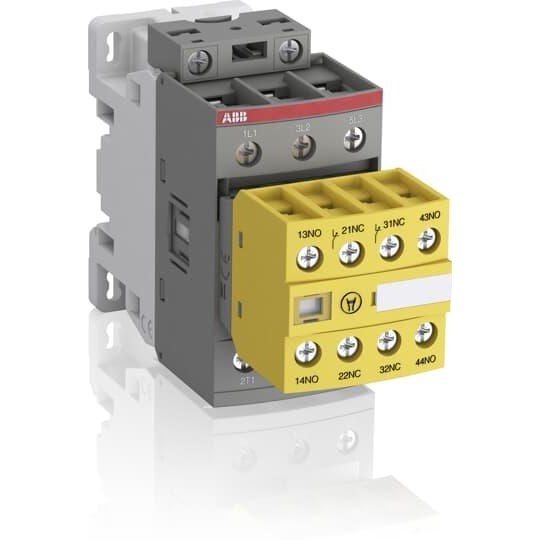

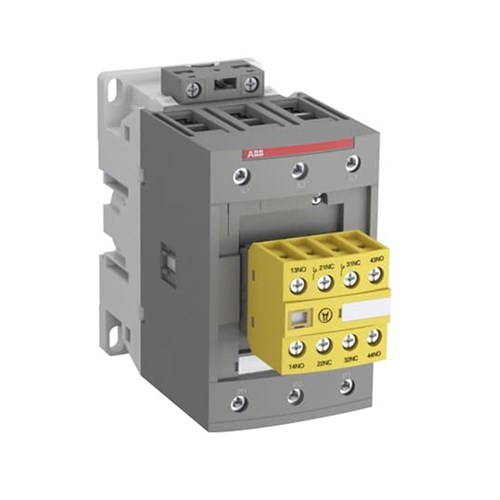

ABB AFS38302211 Safety Contactor 3P 38A 18.5kW 24-60VAC 2NO+2NC
