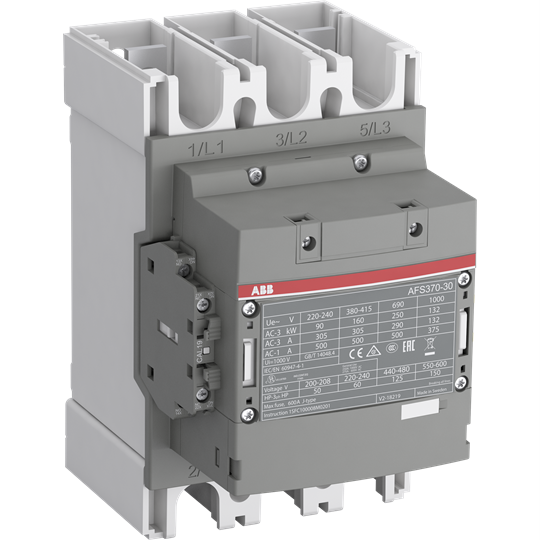

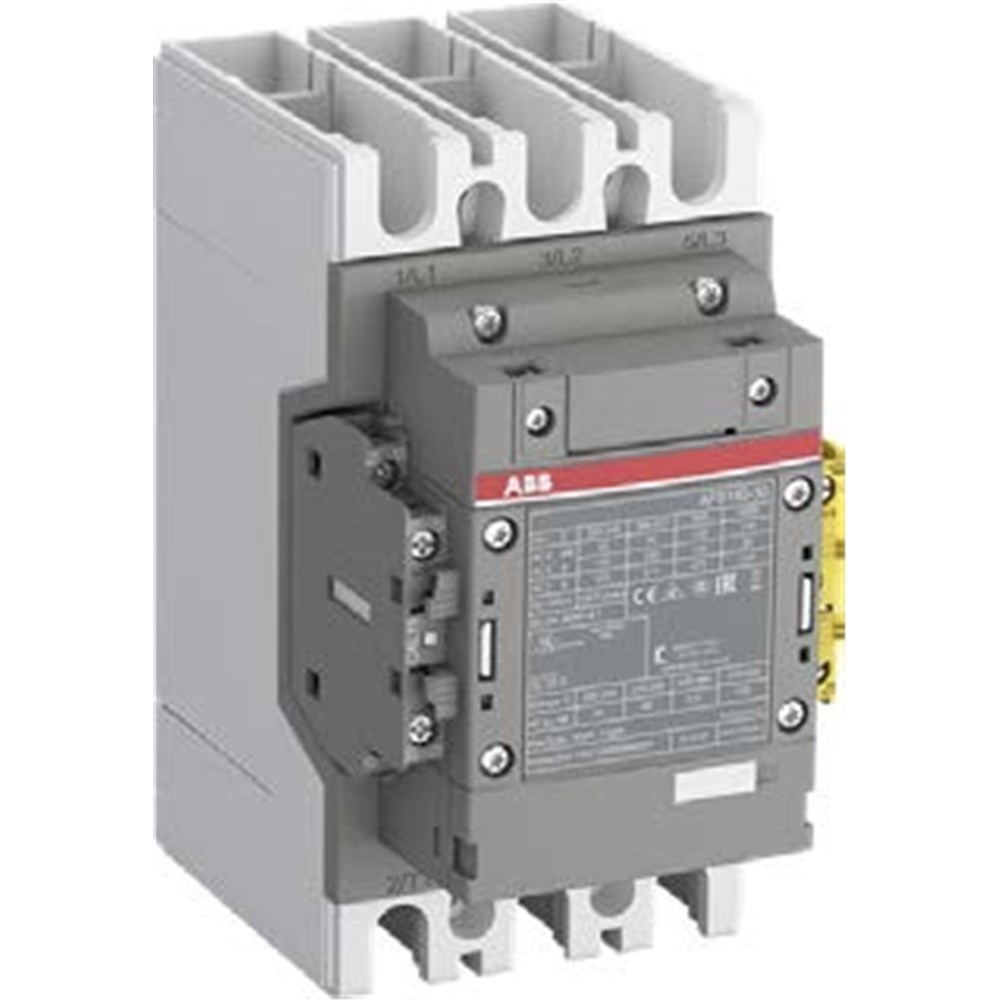

ABB AFS370301213 Safety Contactor 3P 370A 200kW 100-250VAC 1NO+2NC

Product Code: AFS370301213

  • Supports 100-250 VAC, 50/60 Hz operation
  • Handles up to 370 A current
  • Offers IP20 protection rating
  • Compatible with DIN Rail, Panel mounting
  • Features 1NO+2NC contact configuration
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
100V to 250V AC/DC
Rated Operational Current AC-1 <= 690V (Ie)
600A
Rated Operational Current AC-1 1000V (Ie)
400A
Rated Operational Current AC-3 1000V (Ie)
141A
Rated Operational Current AC-3 400V (Ie)
370A
Rated Operational Current AC-3 690V (Ie)
315A
Rated Operational Power AC-3 1000V (Pe)
200kW
Rated Operational Power AC-3 400V (Pe)
200kW
Rated Operational Power AC-3 690V (Pe)
315kW
Rated Frequency
50/60Hz
No. of Poles
3P
No. of Auxiliary Contacts
3

Dimensions & Physical Data

Depth
180mm
Height
225mm
Weight
4kg
Width
140mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529
