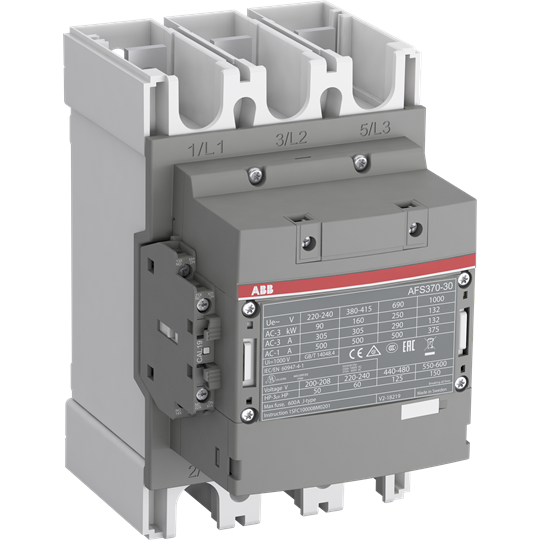

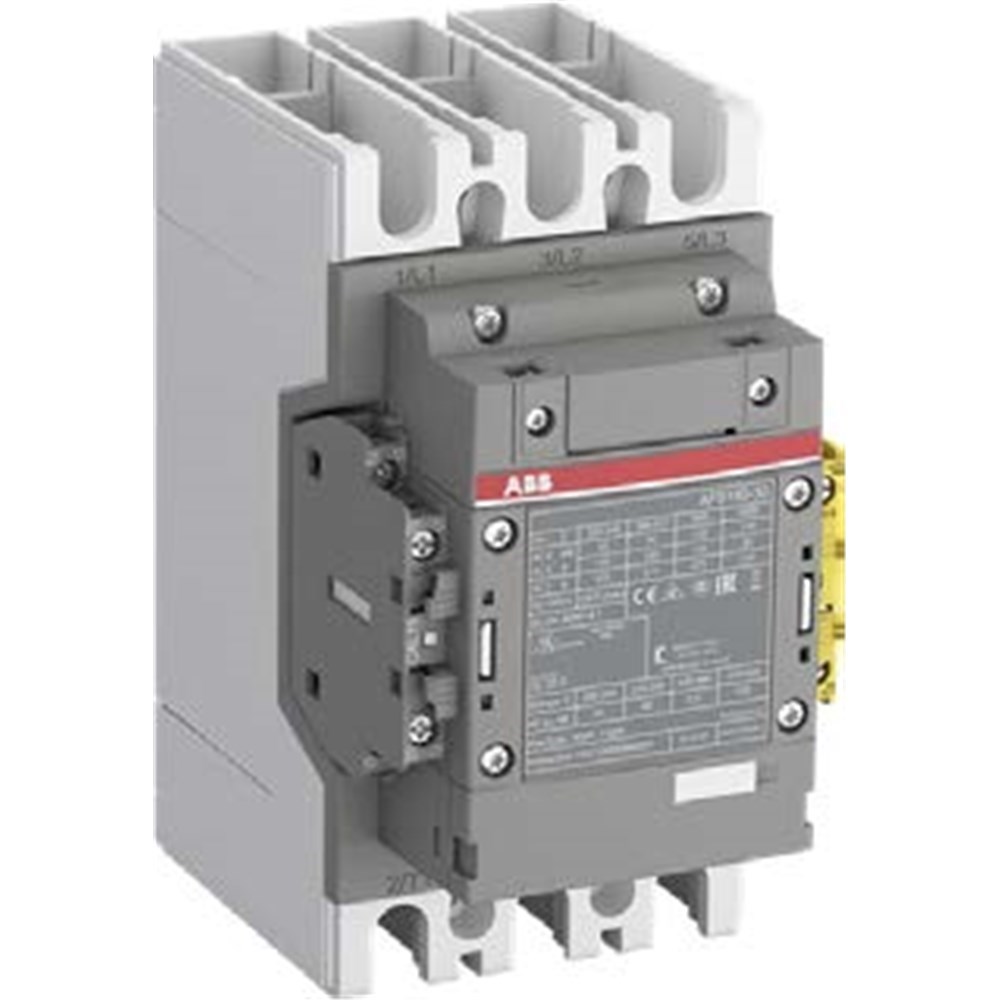

ABB AFS370301211 Safety Contactor 3P 370A 200kW 24-60VAC 1NO+2NC

Product Code: AFS370301211

  • Operates on 24-60 VAC, 370 A
  • Suitable for AC/DC applications
  • Contact config: 1NO+2NC
  • IP20 protection rating
  • Mounts on DIN Rail or Panel
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactors
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
24 ... 60 VAC / 20 ... 60 VDC
Rated Operational Current AC-1 <= 690V (Ie)
600 A
Rated Operational Current AC-1 1000V (Ie)
400 A
Rated Operational Current AC-3 1000V (Ie)
141 A
Rated Operational Current AC-3 400V (Ie)
370 A
Rated Operational Current AC-3 690V (Ie)
315 A
Rated Operational Power AC-3 1000V (Pe)
200 kW
Rated Operational Power AC-3 400V (Pe)
200 kW
Rated Operational Power AC-3 690V (Pe)
315 kW
Rated Frequency
50 / 60 Hz
No. of Poles
3P
No. of Auxiliary Contacts
3

Dimensions & Physical Data

Depth
180 mm
Height
225 mm
Weight
4 kg
Width
140 mm

Environmental

Ambient Temperature
-40 ... 70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529
