Specifications

Product Type

Safety Contactor

Brand

ABB

No. of Poles (Total) 3P	Rated Control Supply Voltage (Us) 24-60V AC / 20-60V DC	Rated Operational Current AC-1 <= 690V (Ie) (690V) 40 °C 500A
Rated Operational Current AC-3 400V (Ie) (415V) 60 °C 305A	Rated Operational Current AC-3 690V (Ie) (690V) 60 °C 290A	Rated Operational Power AC-3 1000V (Pe) (1000V) 185kW
Rated Operational Power AC-3 400V (Pe) (415V) 160kW	Rated Operational Power AC-3 690V (Pe) (690V) 250kW	Rated Frequency 50/60Hz
No. of Auxiliary Contacts 1 NO + 2 NC

Depth 180mm	Height 225mm	Weight 4kg
Width 140mm

Operating Temperature

-25 to 50 °C (Fitted with Thermal O/L Relay)

Standards and Approvals

IEC/EN 60947-1, IEC/EN 60947-4-1

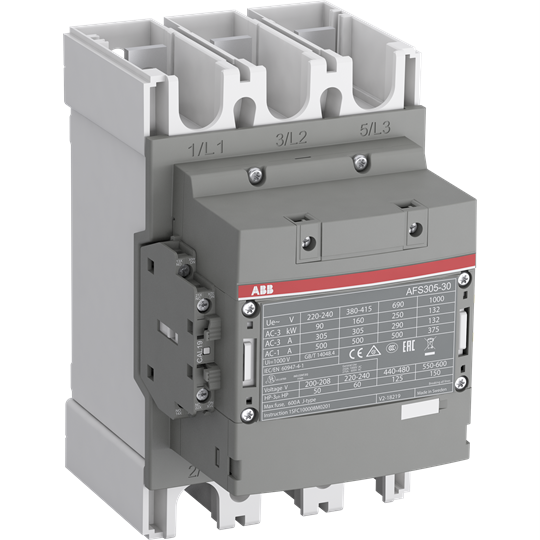

ABB AFS305301211 Safety Contactor 3P 305A 160kW 24-60VAC 1NO+2NC
