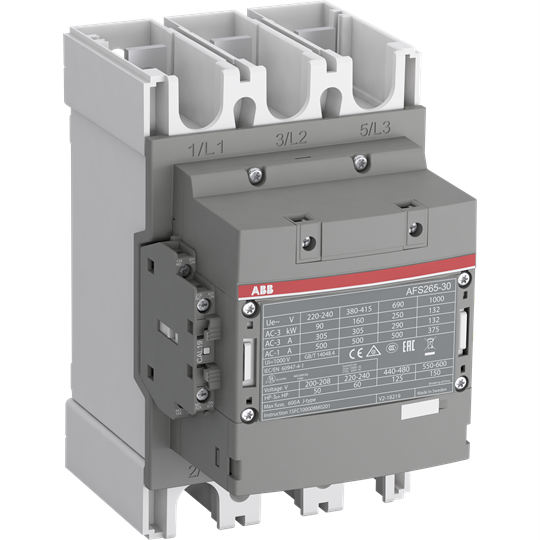

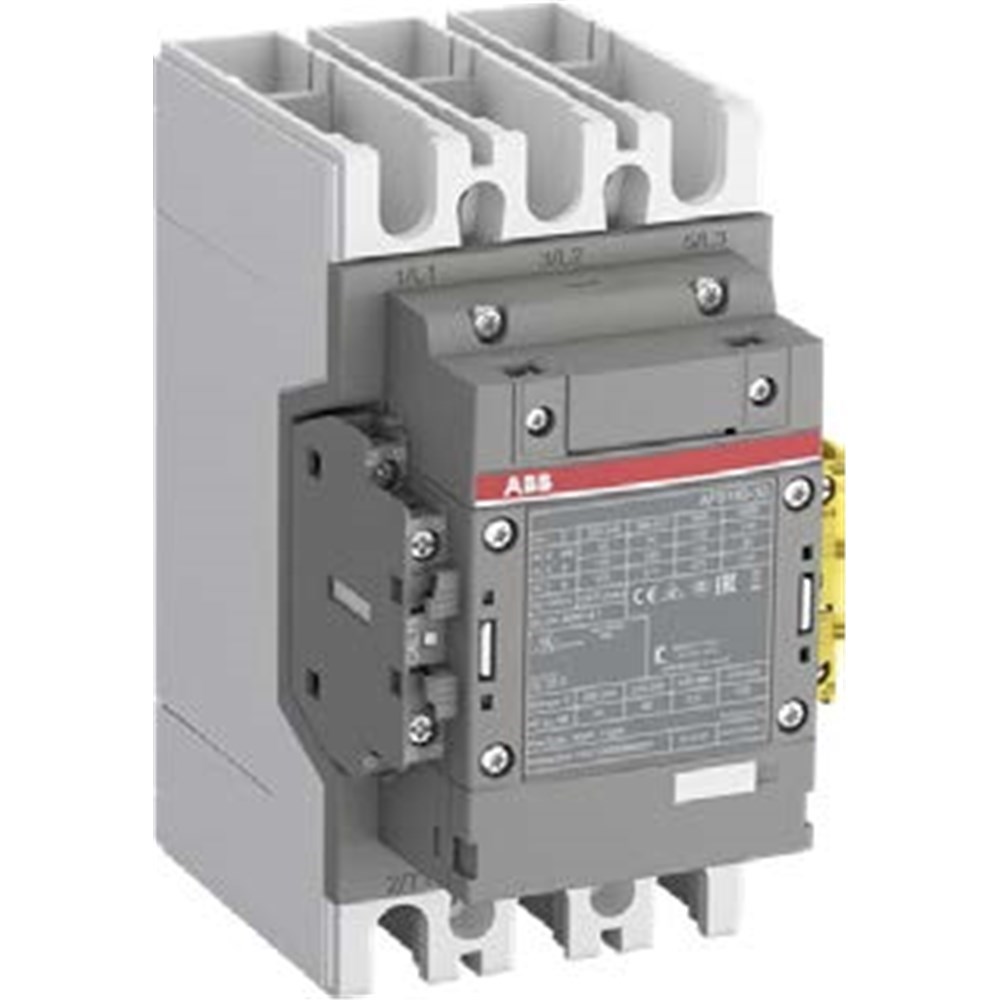

ABB AFS265301213 Safety Contactor 3P 265A 160kW 1000VAC 3NO

Product Code: AFS265301213

  • Supports 1000 VAC and 265 A for robust performance
  • Suitable for both AC/DC operation
  • Offers IP20 protection against solid objects
  • Compatible with DIN rail and panel mounting
  • Equipped with 3NO contact configuration
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactor
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Control Supply Voltage (Us)
100V to 250V AC/DC
Rated Operational Current AC-1 <= 690V (Ie)
(690V) 40 °C 400A
Rated Operational Current AC-1 1000V (Ie)
(1000V) 40 °C 350A
Rated Operational Current AC-3 1000V (Ie)
(1000V) 60 °C 113A
Rated Operational Current AC-3 400V (Ie)
(415V) 60 °C 265A
Rated Operational Current AC-3 690V (Ie)
(690V) 60 °C 250A
Rated Operational Power AC-3 1000V (Pe)
(1000V) 160kW
Rated Operational Power AC-3 400V (Pe)
(415V) 132kW
Rated Operational Power AC-3 690V (Pe)
(690V) 200kW
Rated Frequency
50/60Hz
No. of Auxiliary Contacts
1 NO + 2 NC

Dimensions & Physical Data

Depth
180mm
Height
225mm
Weight
4kg
Width
140mm

Environmental

Operating Temperature
-25 to 50 °C (Fitted with Thermal O/L Relay)

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-4-1
