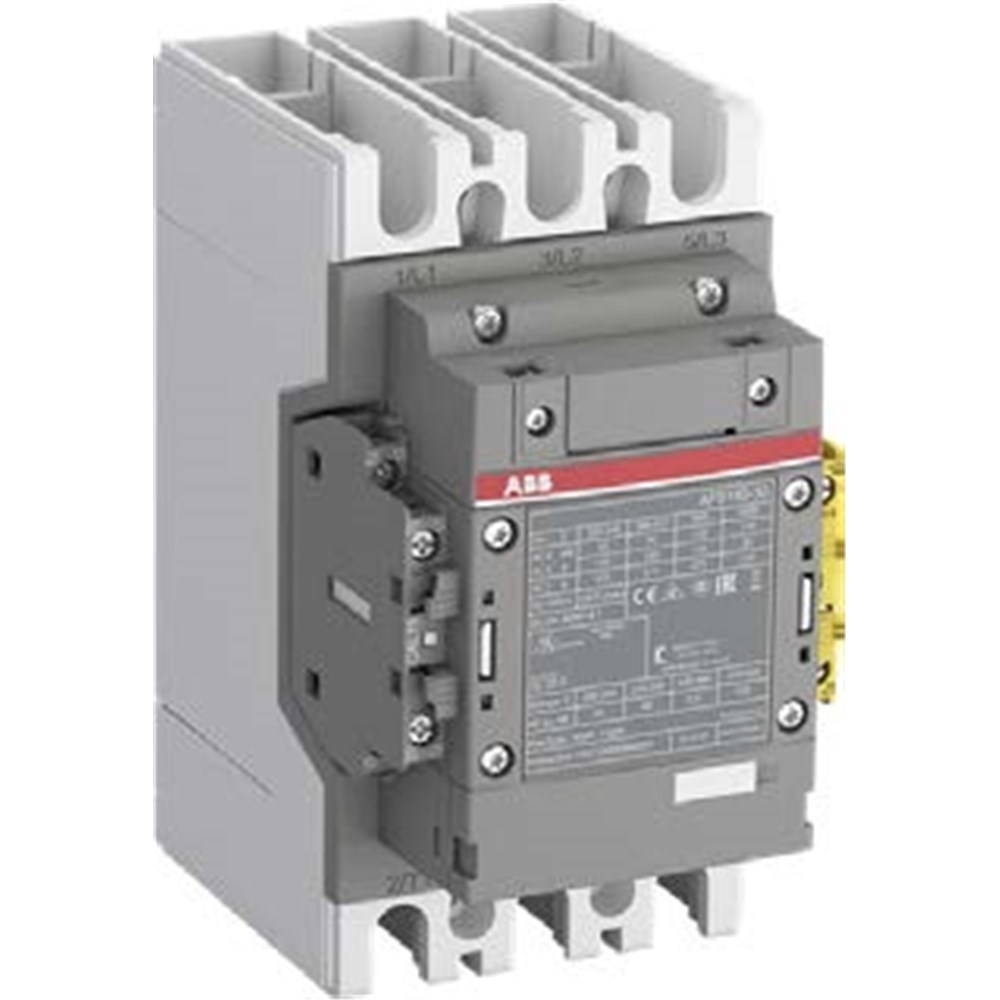

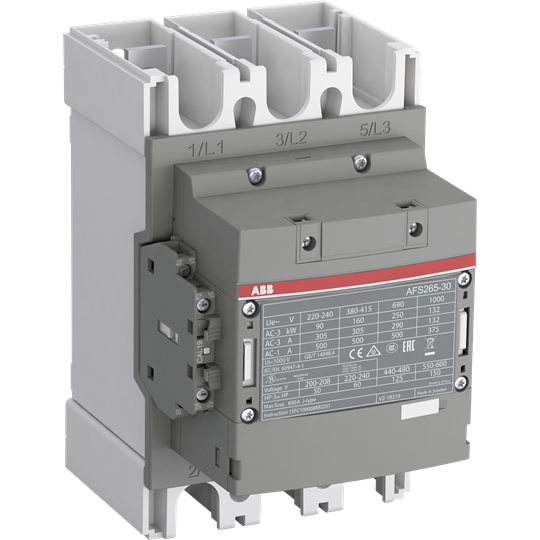

ABB AFS265301211 Safety Contactor 3P 265A 160kW 24-60VAC 3NO

Product Code: AFS265301211

  • Operates on 24-60 VAC with 265 A current
  • Handles up to 160 kW power capacity
  • Features IP20 protection rating
  • Suitable for DIN Rail or Panel mounting
  • Supports AC/DC operation mode
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactor
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Control Supply Voltage (Us)
24-60V AC / 20-60V DC
Rated Operational Current AC-1 <= 690V (Ie)
(690V) 40 °C 400A
Rated Operational Current AC-1 1000V (Ie)
(1000V) 40 °C 350A
Rated Operational Current AC-3 1000V (Ie)
(1000V) 60 °C 113A
Rated Operational Current AC-3 400V (Ie)
(415V) 60 °C 265A
Rated Operational Current AC-3 690V (Ie)
(690V) 60 °C 250A
Rated Operational Power AC-3 1000V (Pe)
(1000V) 160kW
Rated Operational Power AC-3 400V (Pe)
(415V) 132kW
Rated Operational Power AC-3 690V (Pe)
(690V) 200kW
Rated Frequency
50/60Hz
No. of Auxiliary Contacts
1 NO + 2 NC

Dimensions & Physical Data

Depth
180mm
Height
225mm
Weight
4kg
Width
140mm

Environmental

Operating Temperature
-25 to 50 °C (Fitted with Thermal O/L Relay)

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-4-1
