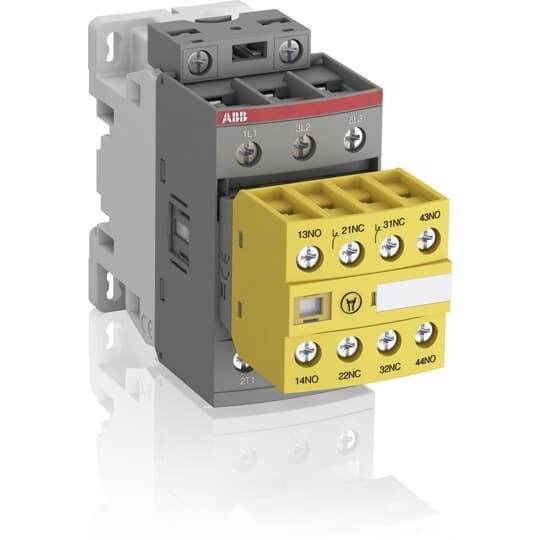

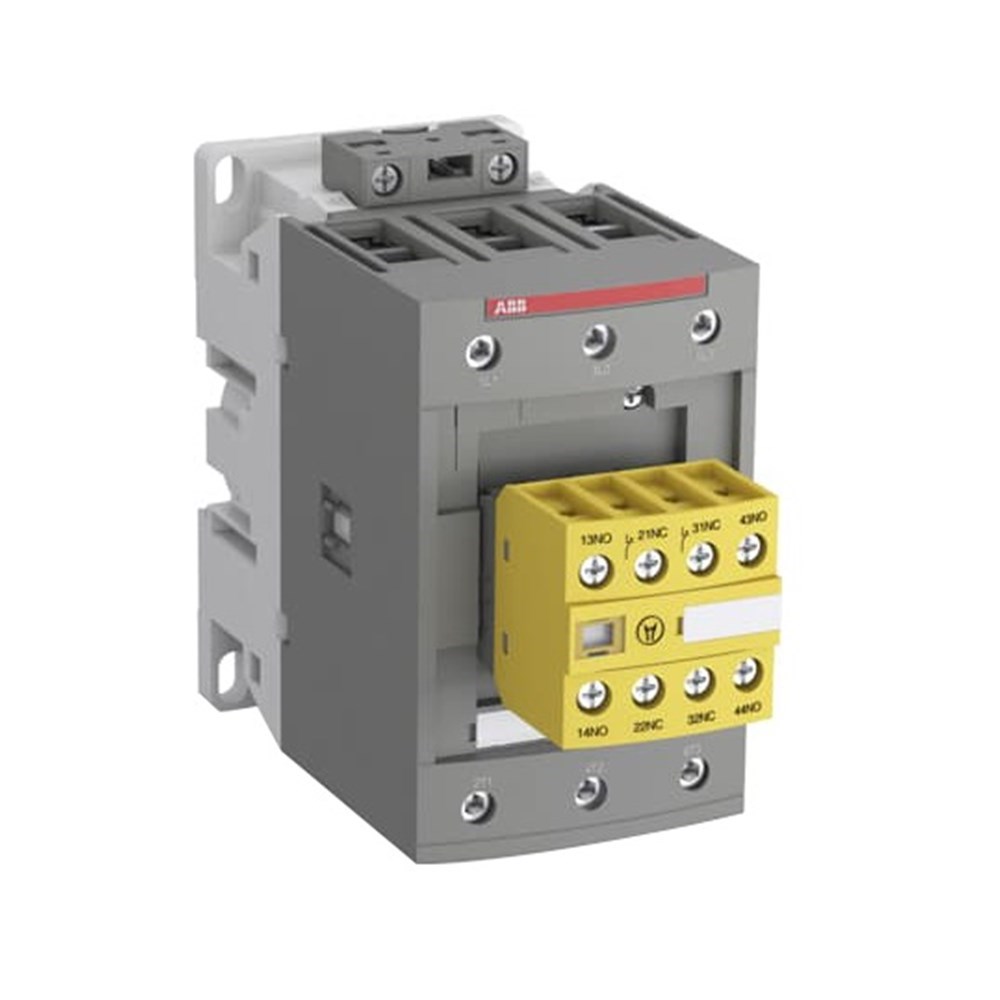

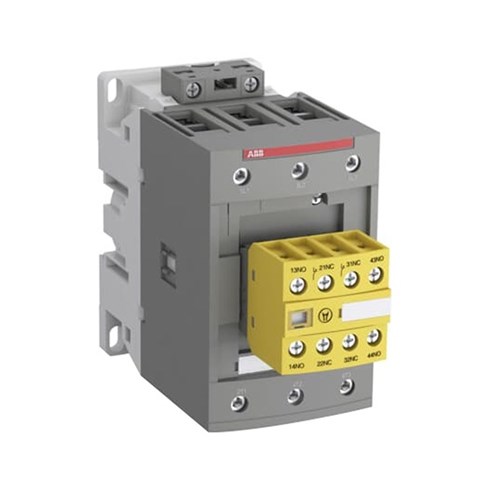

ABB AFS26302213 Safety Contactor 3P 26A 11kW 690VAC 3NO

Product Code: AFS26302213

  • Supports 690 VAC & 26 A
  • Operates at 50/60 Hz frequency
  • Impulse withstand voltage of 6 kV
  • Features a 3NO contact configuration
  • Dual mounting: DIN rail or panel
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactors
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
100 ... 250 VAC/DC
Rated Operational Current AC-1 <= 690V (Ie)
45 A
Rated Operational Current AC-3 400V (Ie)
26 A
Rated Operational Current AC-3 690V (Ie)
17 A
Rated Operational Power AC-3 400V (Pe)
11 kW
Rated Operational Power AC-3 690V (Pe)
15 kW
Rated Frequency
50 / 60 Hz
No. of Poles
3P
No. of Auxiliary Contacts
4

Dimensions & Physical Data

Depth
119.5 mm
Height
86 mm
Weight
0.36 kg
Width
45 mm

Environmental

Ambient Temperature
-40 ... 70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529
