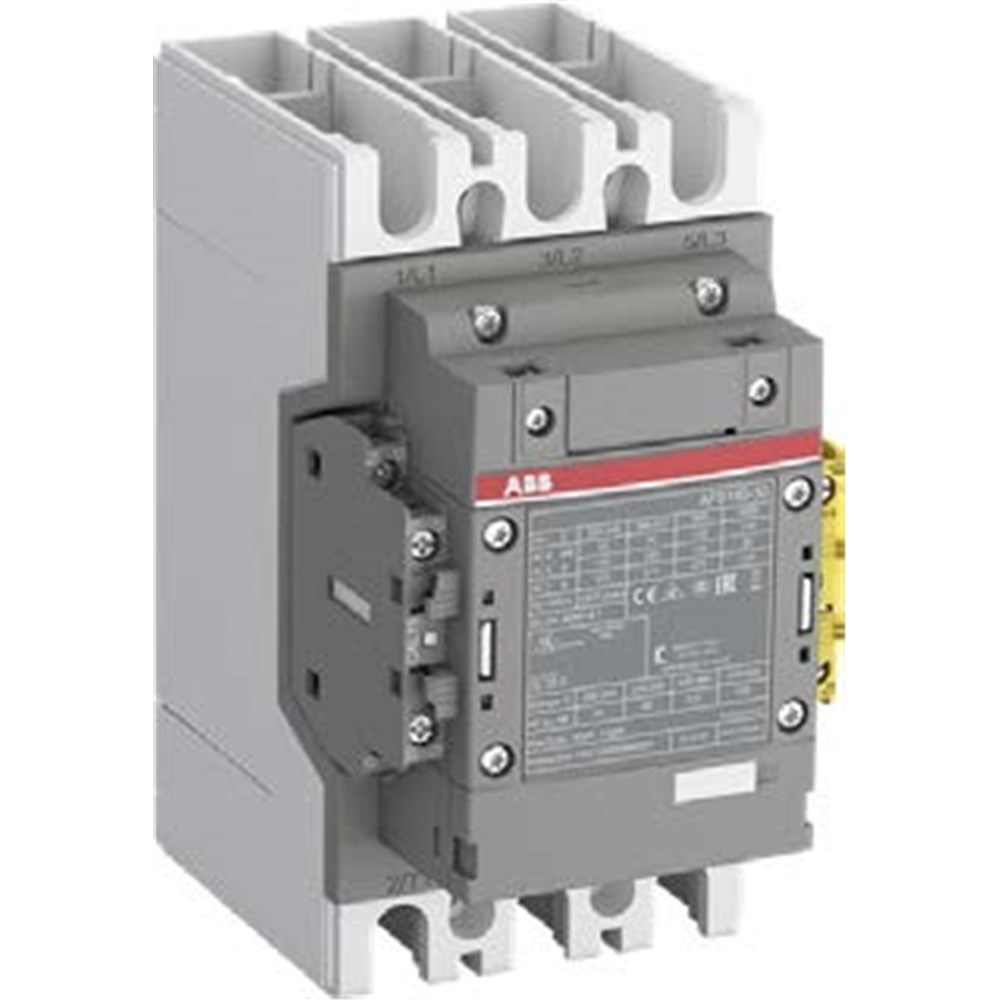

ABB AFS205301213 Safety Contactor 3P 205A 132kW 1000VAC 3NO

Product Code: AFS205301213

  • Supports 1000 VAC, 205 A for robust performance
  • Compatible with both AC/DC operations
  • Offers IP20 protection for safe usage
  • Mounts easily on DIN rail or panel setups
  • Operates efficiently at 132 kW power
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Contactor
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Control Supply Voltage (Us)
100-250 V AC/DC
Rated Operational Current AC-1 <= 690V (Ie)
(690 V) 40 °C 350 A
Rated Operational Current AC-1 1000V (Ie)
(1000 V) 40 °C 275 A
Rated Operational Current AC-3 1000V (Ie)
(1000 V) 60 °C 100 A
Rated Operational Current AC-3 400V (Ie)
(415 V) 60 °C 205 A
Rated Operational Current AC-3 690V (Ie)
(690 V) 60 °C 165 A
Rated Operational Power AC-3 1000V (Pe)
(1000 V) 132 kW
Rated Operational Power AC-3 400V (Pe)
(415 V) 110 kW
Rated Operational Power AC-3 690V (Pe)
(690 V) 160 kW
Rated Frequency
50/60 Hz
No. of Auxiliary Contacts (NO/NC)
1 NO + 2 NC

Dimensions & Physical Data

Depth
152 mm
Height
196 mm
Weight
2.4 kg
Width
105 mm

Environmental

Operating Temperature
-25 to 50 °C (Fitted with Thermal O/L Relay)

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-4-1
