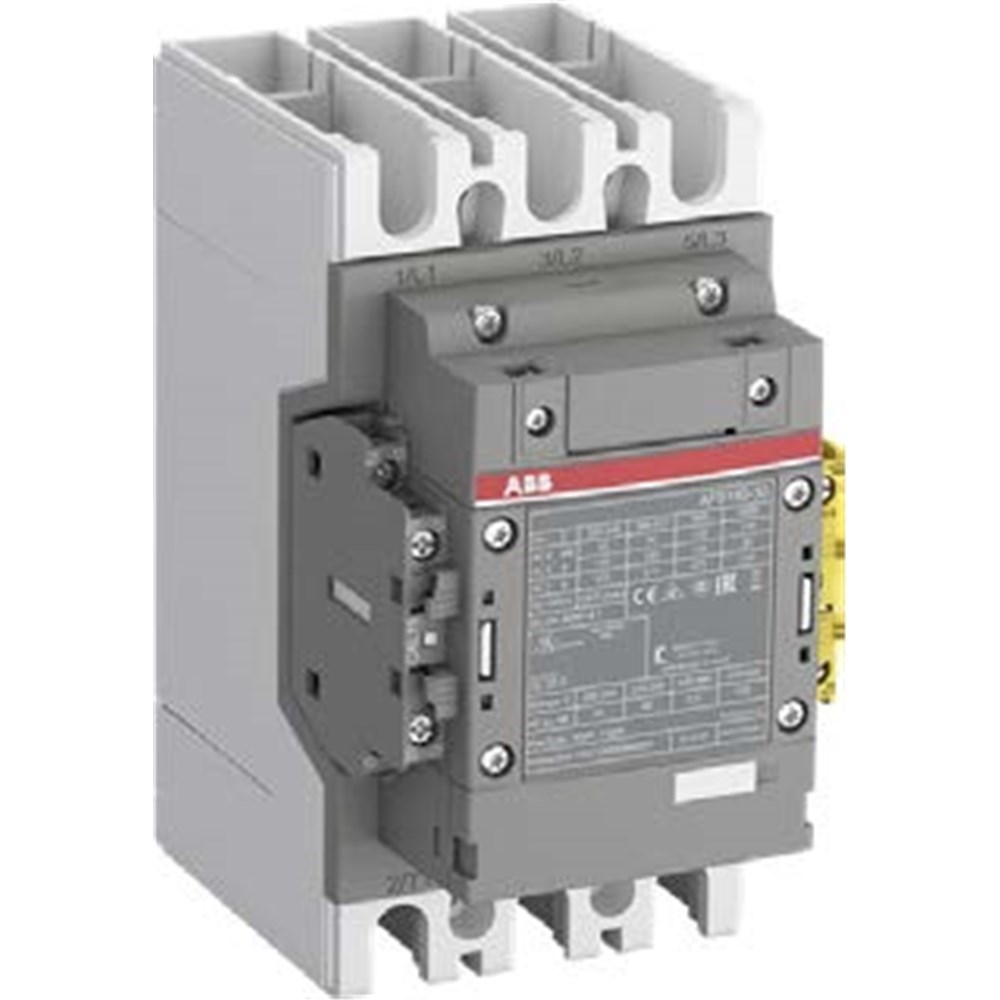

ABB AFS205301211 Safety Contactor 3P 205A 132kW 24-60VAC 3NO

Product Code: AFS205301211

  • Operates on 24-60 VAC, 205 A current
  • Suitable for both AC/DC operation
  • IP20 protection with bar terminals
  • DIN rail or panel mounting options
  • Handles up to 132 kW power
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactor
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Control Supply Voltage (Us)
24-60V AC / 20-60V DC
Rated Operational Current AC-1 <= 690V (Ie)
(690V) 40 °C 350A
Rated Operational Current AC-1 1000V (Ie)
(1000V) 40 °C 275A
Rated Operational Current AC-3 1000V (Ie)
(1000V) 60 °C 100A
Rated Operational Current AC-3 400V (Ie)
(415V) 60 °C 205A
Rated Operational Current AC-3 690V (Ie)
(690V) 60 °C 165A
Rated Operational Power AC-3 1000V (Pe)
(1000V) 132kW
Rated Operational Power AC-3 400V (Pe)
(415V) 110kW
Rated Operational Power AC-3 690V (Pe)
(690V) 160kW
Rated Frequency
50/60Hz
No. of Auxiliary Contacts
1 NO + 2 NC

Dimensions & Physical Data

Depth
152mm
Height
196mm
Weight
2.4kg
Width
105mm

Environmental

Operating Temperature
-25 to 50 °C (Fitted with Thermal O/L Relay)

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-4-1
