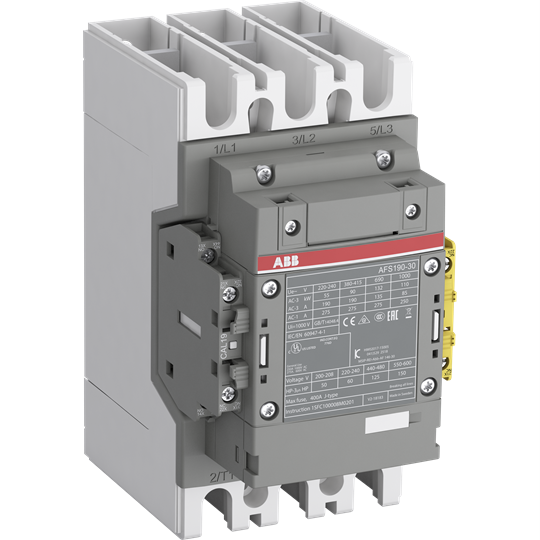

ABB AFS190301211 Safety Contactor 3P 190A 90kW 24-60VAC 3NO+2NC

Product Code: AFS190301211

  • Supports 24-60 VAC operation
  • Handles up to 190 A current
  • Operates efficiently at 50/60 Hz
  • Durable with IP20 protection rating
  • Versatile DIN rail or panel mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
24 ... 60 VAC / 20 ... 60 VDC
Rated Operational Current AC-1 <= 690V (Ie)
275A
Rated Operational Current AC-1 1000V (Ie)
250A
Rated Operational Current AC-3 1000V (Ie)
85A
Rated Operational Current AC-3 400V (Ie)
190A
Rated Operational Current AC-3 690V (Ie)
135A
Rated Operational Power AC-3 1000V (Pe)
110kW
Rated Operational Power AC-3 400V (Pe)
90kW
Rated Operational Power AC-3 690V (Pe)
132kW
Rated Frequency
50/60Hz
No. of Poles
3P
No. of Auxiliary Contacts
3

Dimensions & Physical Data

Depth
152mm
Height
196mm
Weight
2.4kg
Width
105mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529
