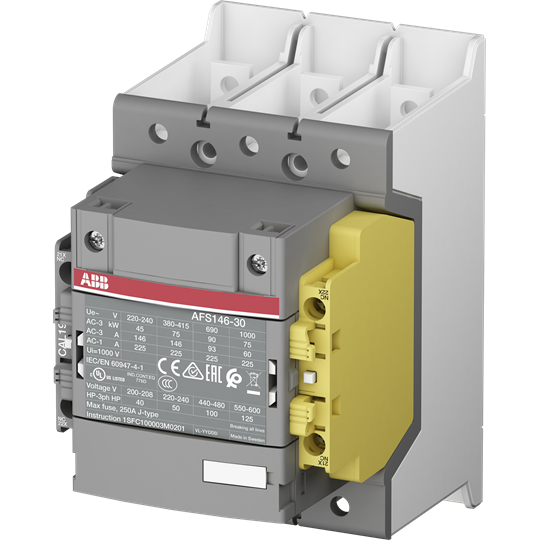

ABB AFS1463012B11 Safety Contactor 3P 146A 75kW 24-60VAC 3NO+2NC

Product Code: AFS1463012B11

  • Operates on 24-60 VAC, 50/60 Hz
  • Handles up to 146 A current
  • Offers IP20 protection rating
  • Mounts on DIN rail or panel
  • Supports AC/DC operation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
24 ... 60 VAC / 20 ... 60 VDC
Rated Operational Current AC-1 <= 690V (Ie)
225A
Rated Operational Current AC-1 1000V (Ie)
225A
Rated Operational Current AC-3 1000V (Ie)
60A
Rated Operational Current AC-3 400V (Ie)
146A
Rated Operational Current AC-3 690V (Ie)
93A
Rated Operational Power AC-3 1000V (Pe)
75kW
Rated Operational Power AC-3 400V (Pe)
75kW
Rated Operational Power AC-3 690V (Pe)
90kW
Rated Frequency
50/60Hz
No. of Poles
3P
No. of Auxiliary Contacts
3

Dimensions & Physical Data

Depth
126mm
Height
150mm
Weight
1.3kg
Width
90mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529

Documents

IPD Product Catalogue V17
