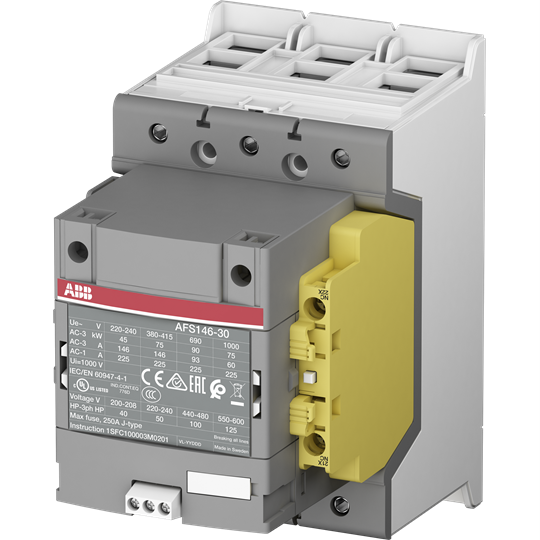

ABB AFS146301233 Safety Contactor 3P 146A 75kW 1000VAC 3NO+2NC

Product Code: AFS146301233

  • Rated for 1000 VAC and 146 A
  • Handles 50/60 Hz frequencies
  • 3NO+2NC contact configuration
  • IP20 protection rating
  • Fits DIN Rail or panel mount
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
100V to 250V AC/DC
Rated Operational Current AC-1 <= 690V (Ie)
225A
Rated Operational Current AC-1 1000V (Ie)
225A
Rated Operational Current AC-3 1000V (Ie)
60A
Rated Operational Current AC-3 400V (Ie)
146A
Rated Operational Current AC-3 690V (Ie)
93A
Rated Operational Power AC-3 1000V (Pe)
75kW
Rated Operational Power AC-3 400V (Pe)
75kW
Rated Operational Power AC-3 690V (Pe)
90kW
Rated Frequency
50/60Hz
No. of Poles
3P
No. of Auxiliary Contacts
3

Dimensions & Physical Data

Depth
126mm
Height
150mm
Weight
1.3kg
Width
90mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529
