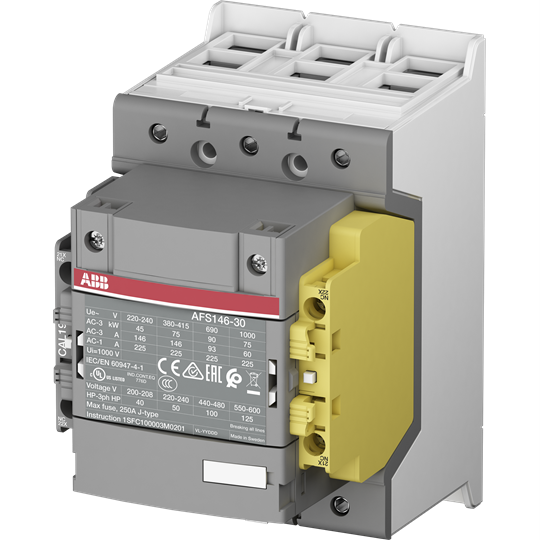

ABB AFS146301211 Safety Contactor 3P 146A 75kW 24-60VAC 3NO+2NC

Product Code: AFS146301211

  • Supports voltage range of 24-60 VAC
  • Handles current up to 146 A
  • Contact config: 3NO+2NC for versatility
  • Fits DIN rail or panel mounting setups
  • Rated power capacity of 75 kW
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Contactor
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Control Supply Voltage (Us)
24-60 V AC / 20-60 V DC
Rated Operational Current AC-1 <= 690V (Ie)
(690 V) 40 °C 225 A
Rated Operational Current AC-1 1000V (Ie)
(1000 V) 40 °C 225 A
Rated Operational Current AC-3 1000V (Ie)
(1000 V) 60 °C 60 A
Rated Operational Current AC-3 400V (Ie)
(415 V) 60 °C 146 A
Rated Operational Current AC-3 690V (Ie)
(690 V) 60 °C 93 A
Rated Operational Power AC-3 1000V (Pe)
(1000 V) 75 kW
Rated Operational Power AC-3 400V (Pe)
(415 V) 75 kW
Rated Operational Power AC-3 690V (Pe)
(690 V) 90 kW
Rated Frequency
50/60 Hz
No. of Auxiliary Contacts (NO/NC)
1 NO + 2 NC

Dimensions & Physical Data

Depth
126 mm
Height
150 mm
Weight
1.3 kg
Width
90 mm

Environmental

Operating Temperature
-25 to 50 °C (Fitted with Thermal O/L Relay)

Safety, Standards & Compliance

Standards and Approvals
UL 60947-4-1, CSA C22.2 No. 60947-4-1-14
