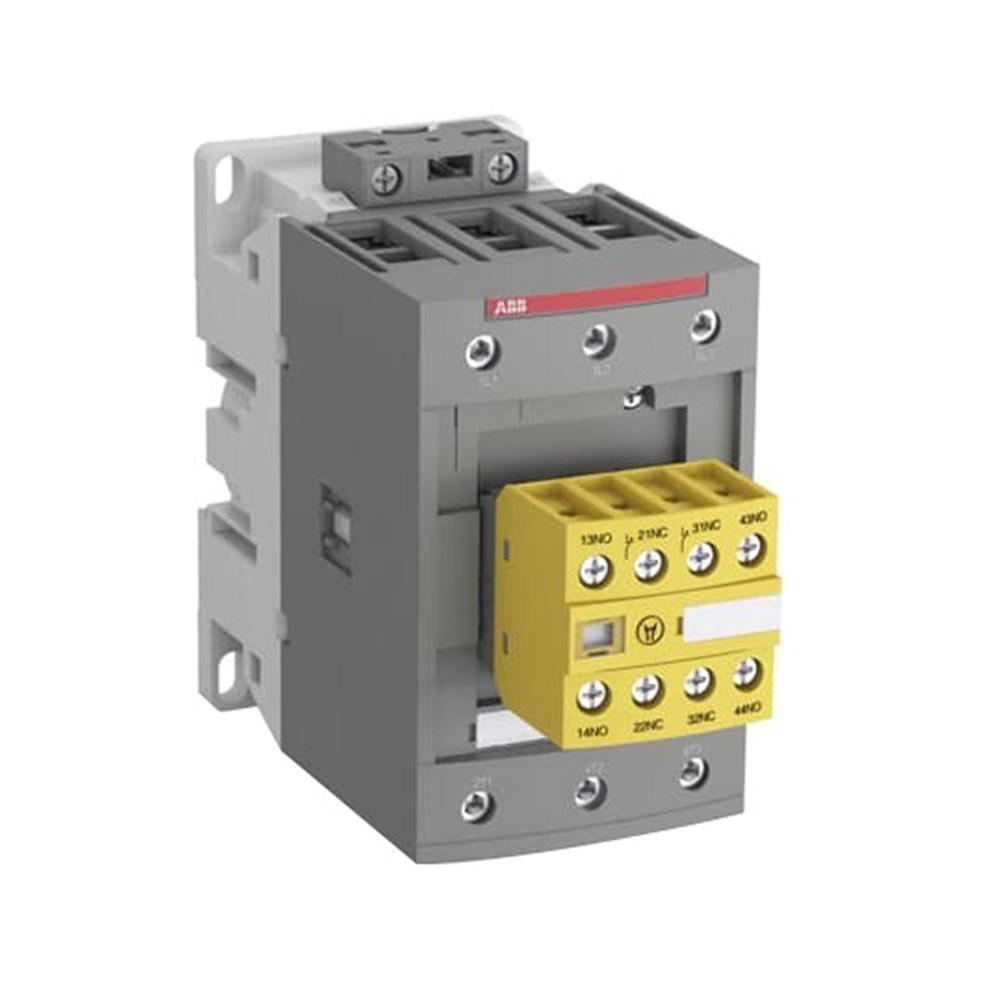

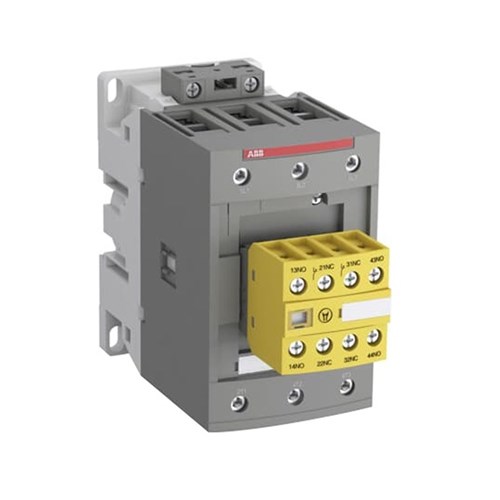

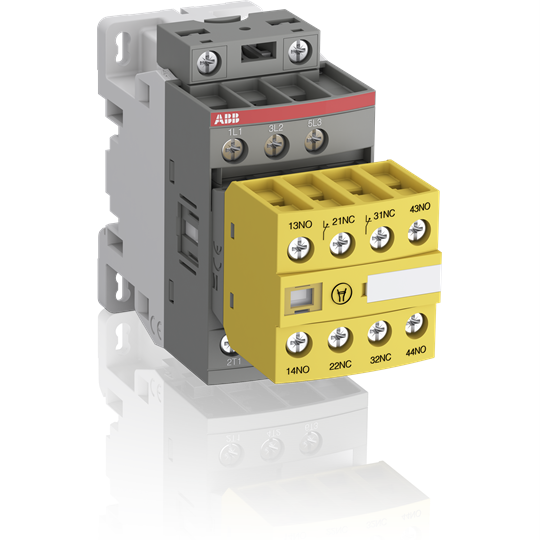

ABB AFS12302213 Safety Contactor 3P 12A 5.5kW 53A/22kW AC3 100-250VAC/DC COIL3NO+2NC

Product Code: AFS12302213

  • Compatible with 690 VAC systems
  • Handles up to 12 A current
  • Operates on both AC and DC modes
  • IP20/IP40 protection rating
  • DIN Rail or Panel mountable
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
100 ... 250 VAC/DC
Rated Operational Current AC-1 <= 690V (Ie)
28 A
Rated Operational Current AC-3 400V (Ie)
12:00 AM
Rated Operational Current AC-3 690V (Ie)
9:00 AM
Rated Operational Power AC-3 400V (Pe)
5.5 kW
Rated Operational Power AC-3 690V (Pe)
7.5 kW
Rated Frequency
50 / 60 Hz
No. of Poles
3P
No. of Auxiliary Contacts
4

Dimensions & Physical Data

Depth
110.5 mm
Height
86 mm
Weight
0.32 kg
Width
45 mm

Environmental

Ambient Temperature
-40 ... 70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529
