Specifications

Product Type

Safety Contactor

Brand

ABB

No. of Poles (Total) 3P	Rated Control Supply Voltage (Us) 24-60V AC / 20-60V DC	Rated Operational Current AC-1 <= 690V (Ie) (690V) 40 °C 28A
Rated Operational Current AC-3 400V (Ie) (415V) 60 °C 12A	Rated Operational Current AC-3 690V (Ie) (690V) 60 °C 9A	Rated Operational Power AC-3 400V (Pe) (400V) 5.5kW
Rated Operational Power AC-3 690V (Pe) (690V) 7.5kW	Rated Frequency 50/60Hz	No. of Auxiliary Contacts 2 NO + 2 NC

Depth 110.5mm	Height 86mm	Weight 0.32kg
Width 45mm

Operating Temperature

-25 to 60 °C (Fitted with Thermal O/L Relay)

Standards and Approvals

IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1

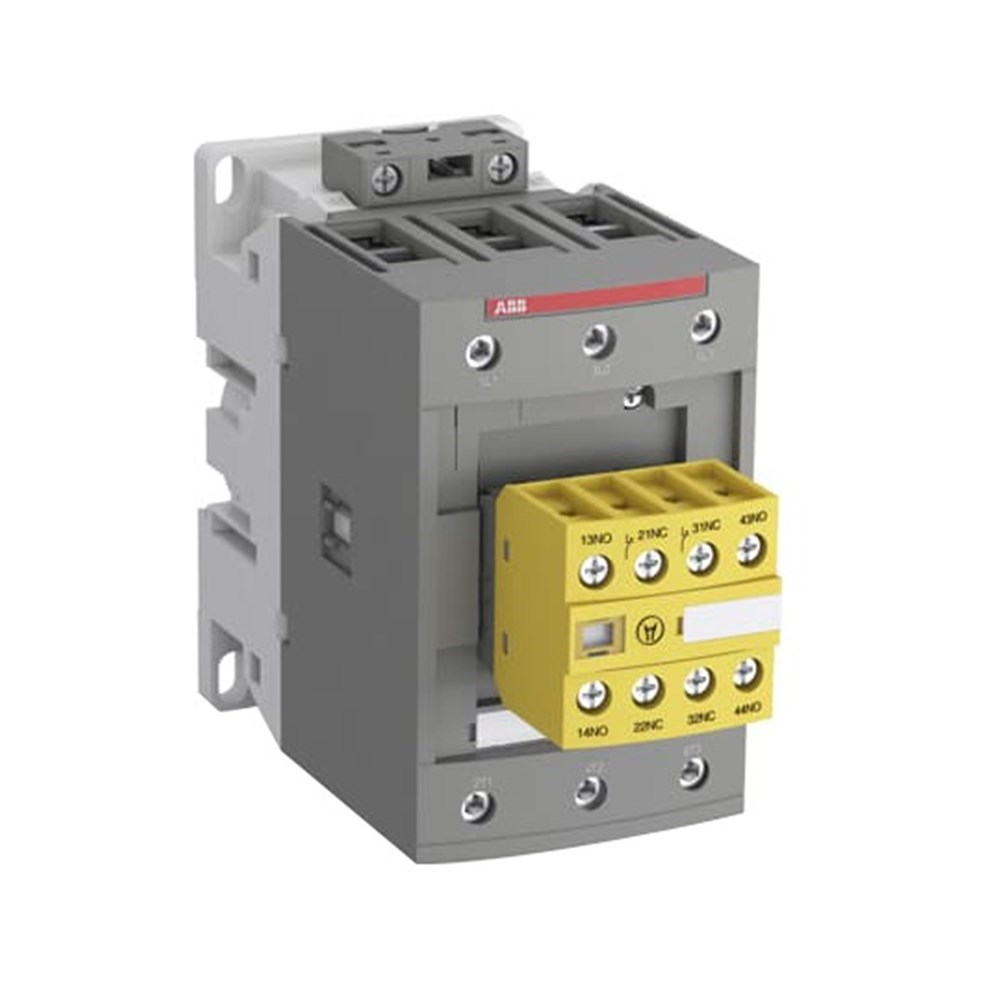

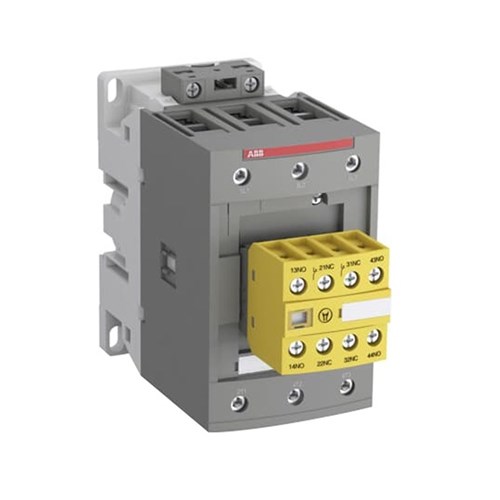

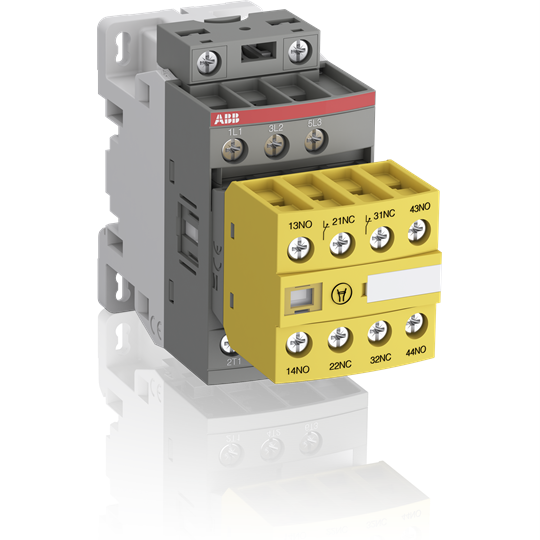

ABB AFS12302211 Safety Contactor 3P 12A 5.5kW 690VAC 2NO+2NC
