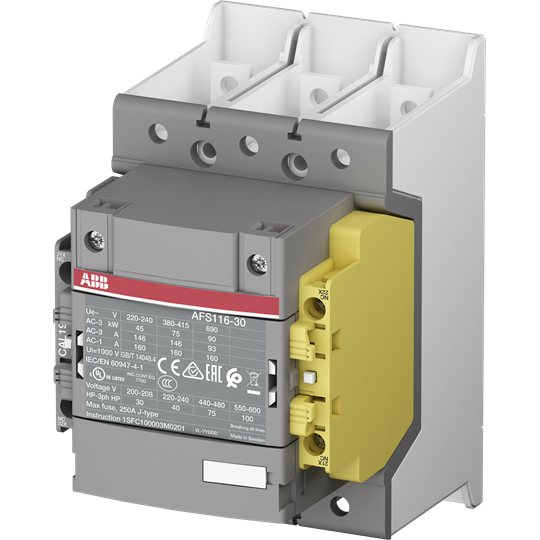

ABB AFS1163012B11 Safety Contactor 3P 116A 55kW 24-60VAC 1NO+2NC

Product Code: AFS1163012B11

  • Supports 24-60 VAC, 116 A for flexible use
  • Offers IP20 protection for safe operation
  • Compatible with DIN Rail or Panel mounting
  • Features 1NO+2NC contact configuration
  • Operates efficiently on AC/DC systems
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
24 ... 60 VAC / 20 ... 60 VDC
Rated Operational Current AC-1 <= 690V (Ie)
160A
Rated Operational Current AC-3 400V (Ie)
116A
Rated Operational Current AC-3 690V (Ie)
65A
Rated Operational Power AC-3 400V (Pe)
55kW
Rated Operational Power AC-3 690V (Pe)
55kW
Rated Frequency
50/60Hz
No. of Poles
3P
No. of Auxiliary Contacts
3

Dimensions & Physical Data

Depth
126mm
Height
150mm
Weight
1.3kg
Width
90mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529

Documents

IPD Product Catalogue V17
