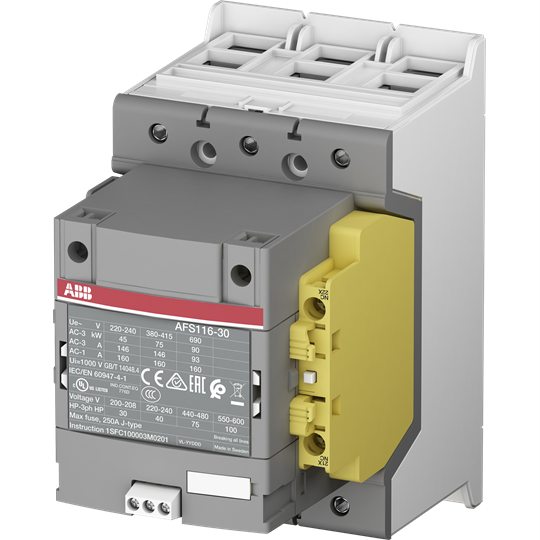

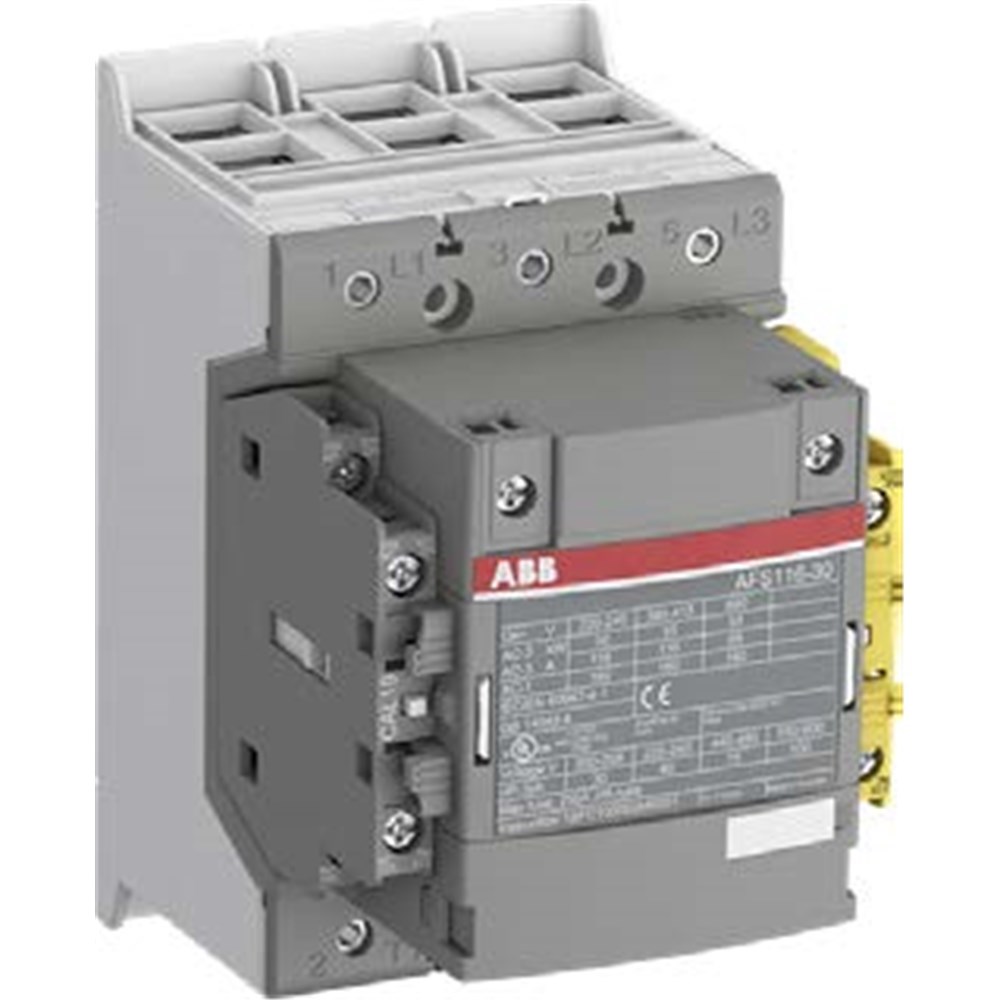

ABB AFS116301233 Safety Contactor 3P 116A 55kW 690VAC 1NO+2NC

Product Code: AFS116301233

  • Rated voltage of 690 VAC for high power applications
  • Handles up to 116 A current efficiently
  • IP20 protection ensures safety from touch and dust
  • Flexible mounting on DIN rail or panel
  • Operates in both AC and DC modes
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
100V to 250V AC/DC
Rated Operational Current AC-1 <= 690V (Ie)
160A
Rated Operational Current AC-3 400V (Ie)
116A
Rated Operational Current AC-3 690V (Ie)
65A
Rated Operational Power AC-3 400V (Pe)
55kW
Rated Operational Power AC-3 690V (Pe)
55kW
Rated Frequency
50/60Hz
No. of Poles
3P
No. of Auxiliary Contacts
3

Dimensions & Physical Data

Depth
126mm
Height
150mm
Weight
1.3kg
Width
90mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529
