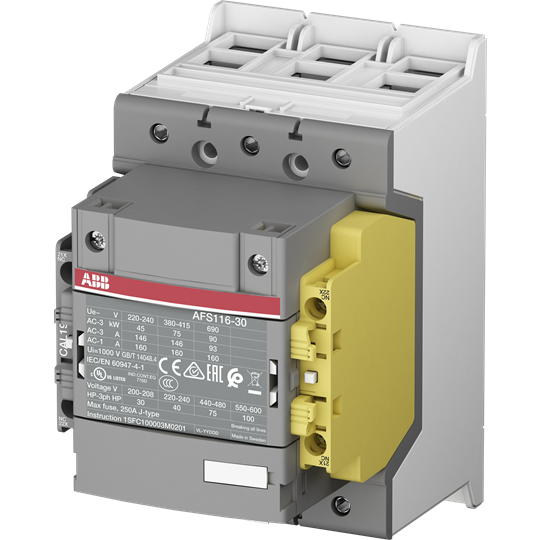

ABB AFS116301211 Safety Contactor 3P 116A 55kW 24-60VAC 1NO+2NC

Product Code: AFS116301211

  • Operates on 24-60 VAC, 50/60 Hz
  • Supports up to 116 A current
  • Features IP20 protection rating
  • DIN Rail and panel mount options
  • Compact size: 90x150x126 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Contactor
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Control Supply Voltage (Us)
24-60V AC / 20-60V DC
Rated Operational Current AC-1 <= 690V (Ie)
(690V) 40 °C 160A
Rated Operational Current AC-3 400V (Ie)
(415V) 60 °C 116A
Rated Operational Current AC-3 690V (Ie)
(690V) 60 °C 65A
Rated Operational Power AC-3 400V (Pe)
(415V) 55kW
Rated Operational Power AC-3 690V (Pe)
(690V) 55kW
Rated Frequency
50/60Hz
No. of Auxiliary Contacts
1 NO + 2 NC

Dimensions & Physical Data

Depth
126mm
Height
150mm
Weight
1.55kg
Width
90mm

Environmental

Operating Temperature
-25 to 50 °C (Fitted with Thermal O/L Relay)

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-4-1
