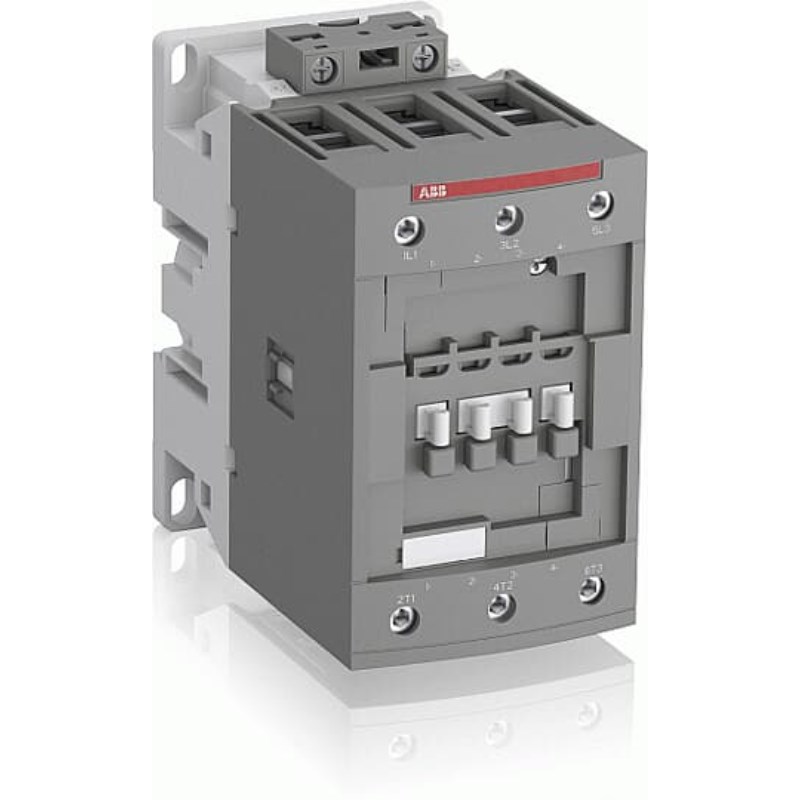

ABB AF96300011 AF Contactor 3P 3NO 130A 45kW 24-60VAC Screw DIN Rail Panel Mount

Product Code: AF96300011

  • Handles up to 130 A current
  • Operates on 24-60 VAC voltage
  • Compact size: 70x125.5x116 mm
  • Suitable for DIN rail/panel mounting
  • IP10 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Contactor
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Control Supply Voltage (Us)
24-60 V AC / 20-60 V DC
Rated Operational Current AC-1 <= 690V (Ie)
(690 V) 40 °C 130 A
Rated Operational Current AC-3 1000V (Ie)
(1000 V) 60 °C 30 A
Rated Operational Current AC-3 400V (Ie)
(415 V) 60 °C 96 A
Rated Operational Current AC-3 690V (Ie)
(690 V) 60 °C 57 A
Rated Operational Power AC-3 1000V (Pe)
(1000 V) 40 kW
Rated Operational Power AC-3 400V (Pe)
(415 V) 55 kW
Rated Operational Power AC-3 690V (Pe)
(690 V) 55 kW
Rated Frequency
50/60 Hz
No. of Auxiliary Contacts (NO/NC)
0 NO + 0 NC

Dimensions & Physical Data

Depth
116 mm
Height
125.5 mm
Weight
1.22 kg
Width
70 mm

Environmental

Operating Temperature
-40 to 70 °C (Fitted with Thermal O/L Relay)

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22
