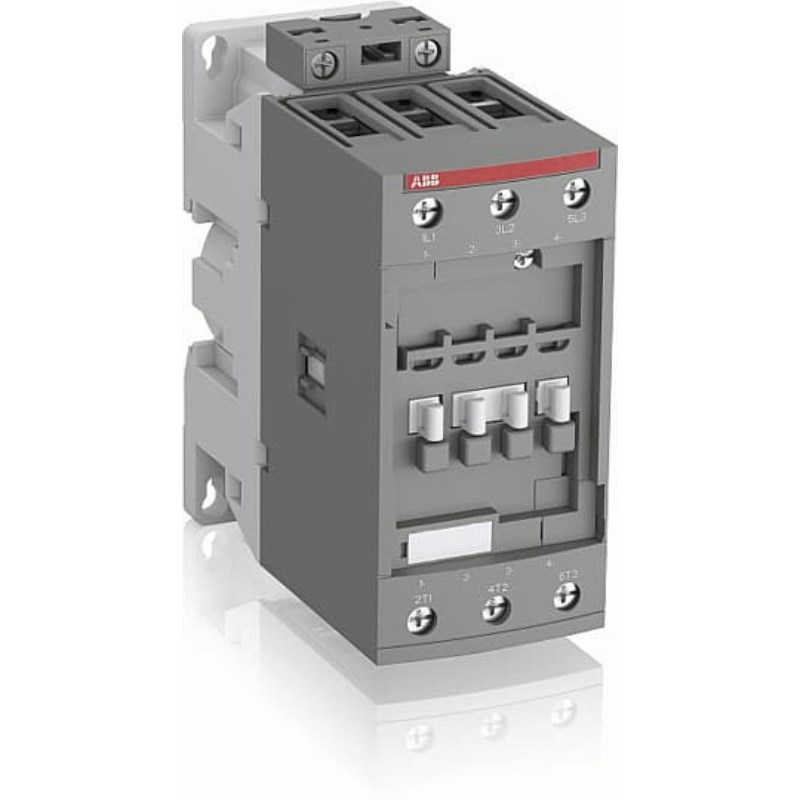

ABB AF65300013 AF Contactor 3P 3NO 105A 30kW 690VAC Screw DIN Rail Panel Mount

Product Code: AF65300013

  • Handles up to 105 A at 690 VAC
  • Compatible with 50/60 Hz systems
  • Features 3NO contact configuration
  • Easy screw terminal connections
  • Mounts on DIN rail or panel
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Contactor
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Control Supply Voltage (Us)
100-250 V AC/DC
Rated Operational Current AC-1 <= 690V (Ie)
(690 V) 40 °C 105 A
Rated Operational Current AC-3 400V (Ie)
(415 V) 60 °C 65 A
Rated Operational Current AC-3 690V (Ie)
(690 V) 60 °C 39 A
Rated Operational Power AC-3 400V (Pe)
(400 V) 30 kW
Rated Operational Power AC-3 690V (Pe)
(690 V) 37 kW
Rated Frequency
50/60 Hz
No. of Auxiliary Contacts (NO/NC)
0 NO + 0 NC

Dimensions & Physical Data

Depth
111 mm
Height
125.5 mm
Weight
0.95 kg
Width
55 mm

Environmental

Operating Temperature
-40 to 70 °C (Fitted with Thermal O/L Relay)

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22
