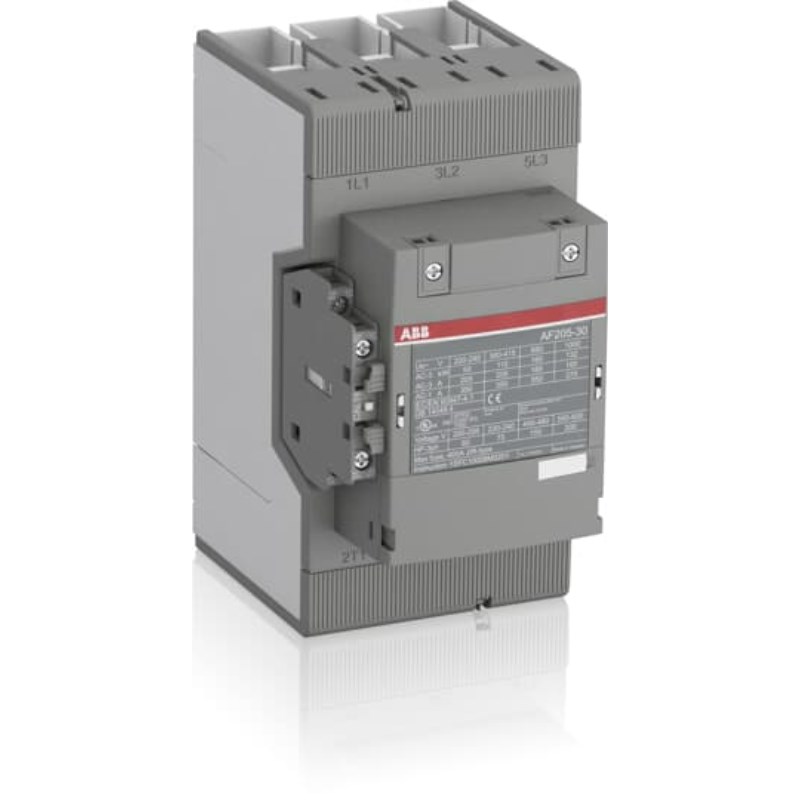

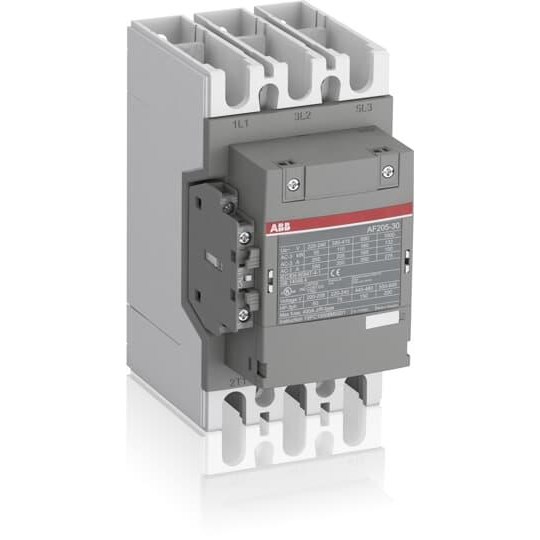

ABB AF205301111 AF Contactor 3P 3NO 350A 110kW 24-60VAC Bar Panel Mount

Product Code: AF205301111

  • AF Contactor with 3NO contact configuration
  • Handles up to 350 A current, 110 kW power
  • Operates on 24-60 VAC, 50/60 Hz frequency
  • IP20 protection for panel mounting
  • Compact size: W105 x H196 x D152 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Contactor
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Control Supply Voltage (Us)
24-60 V AC / 20-60 V DC
Rated Operational Current AC-1 <= 690V (Ie)
(690 V) 40 °C 350 A
Rated Operational Current AC-1 1000V (Ie)
(1000 V) 40 °C 275 A
Rated Operational Current AC-3 1000V (Ie)
(1000 V) 60 °C 100 A
Rated Operational Current AC-3 400V (Ie)
(415 V) 60 °C 205 A
Rated Operational Current AC-3 690V (Ie)
(690 V) 60 °C 165 A
Rated Operational Power AC-3 1000V (Pe)
(1000 V) 132 kW
Rated Operational Power AC-3 400V (Pe)
(415 V) 110 kW
Rated Operational Power AC-3 690V (Pe)
(690 V) 160 kW
Rated Frequency
50/60 Hz
No. of Auxiliary Contacts (NO/NC)
1 NO + 1 NC

Dimensions & Physical Data

Depth
152 mm
Height
196 mm
Weight
2.4 kg
Width
105 mm

Environmental

Operating Temperature
-25 to 50 °C (Fitted with Thermal O/L Relay)

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-4-1
