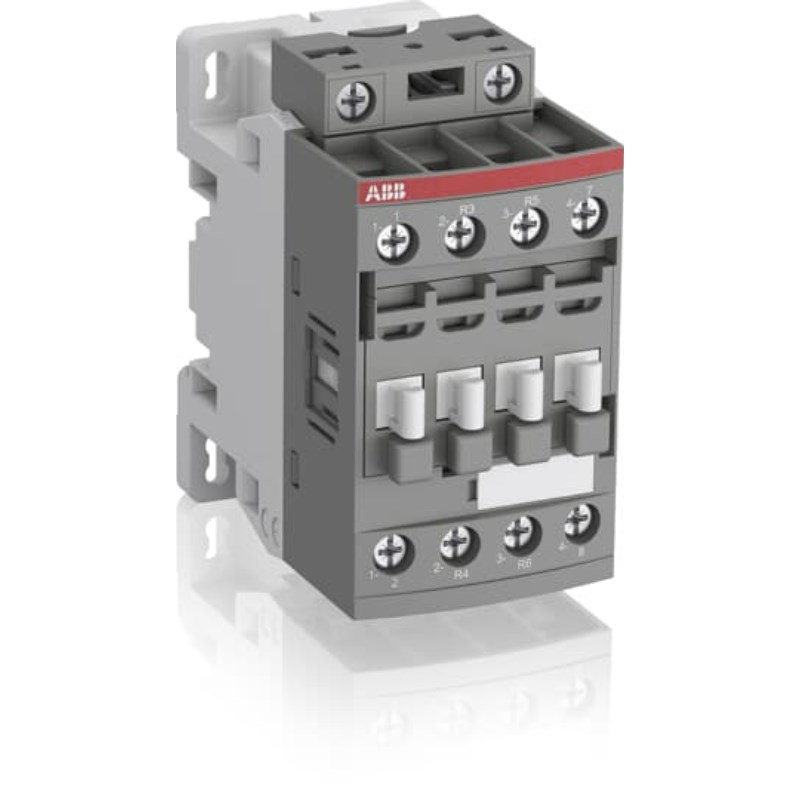

ABB AF16Z220021 AF Contactor 4P 2NO+2NC 30A 9kW 24-60VAC Screw DIN Rail Panel Mount

Product Code: AF16Z220021

  • Operates at 24-60 VAC, 30 A
  • Contact config: 2NO+2NC
  • Fits DIN rail or panel mount
  • Compact size: 45x86x77 mm
  • Complies with IEC/EN & UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
4-Pole Contactors
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
50 Hz 24 ... 60 V60 Hz 24 ... 60 VDC Operation 20 ... 60 V
Rated Operational Current AC-1 <= 690V (Ie)
30 A
Rated Operational Current AC-3 400V (Ie)
18 A
Rated Operational Current AC-3 690V (Ie)
10.5 A
Rated Operational Power AC-3 400V (Pe)
7.5 kW
Rated Operational Power AC-3 690V (Pe)
9 kW
Rated Frequency
50 / 60 Hz
No. of Poles
4P

Dimensions & Physical Data

Depth
77 mm
Height
86 mm
Weight
0.31 kg
Width
45 mm

Environmental

Ambient Temperature
-40 ... 70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CAN/CSA C22.2 No.60947-1, CAN/CSA C22.2 No.60947-4-1
