Specifications

Product Type

Contactor

Brand

ABB

No. of Poles (Total) 3P	Rated Control Supply Voltage (Us) 100-250 V AC/DC	Rated Operational Current AC-1 <= 690V (Ie) (690 V) 40 °C 160 A
Rated Operational Current AC-3 400V (Ie) (415 V) 60 °C 116 A	Rated Operational Current AC-3 690V (Ie) (690 V) 60 °C 65 A	Rated Operational Power AC-3 400V (Pe) (415 V) 55 kW
Rated Operational Power AC-3 690V (Pe) (690 V) 55 kW	Rated Frequency 50/60 Hz	No. of Auxiliary Contacts (NO/NC) 1 NO + 1 NC

Depth 126 mm	Height 150 mm	Weight 1.55 kg
Width 90 mm

Operating Temperature

-25 to 50 °C (Fitted with Thermal O/L Relay)

Standards and Approvals

IEC 60947-4-1, EN 60947-4-1

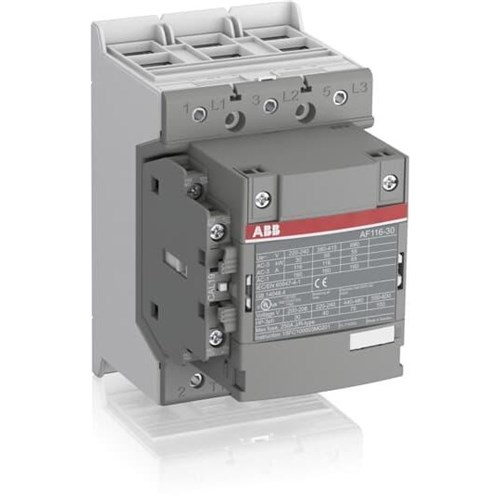

ABB AF116301113 AF Contactor 3P 3NO 160A 55kW 690VAC Double Clamp DIN Rail Panel Mount
