Specifications

Product Type

Analog Timer

Brand

ABB

Series

Function Daily	Contact Type Normally Open (NO)	Rated Operational Voltage (Ue) 230V
Accuracy Operating accuracy: ± 1 second/day at 23°C Switching accuracy: ± 5 minutes	Power Loss Total 0.5W	Minimum Switching Time 15 min
Max. Switching Power 4000W Incandescent Lamp or Halogen High Voltage Lamps 2500W Fluorescent Lamp 1200W Low Voltage Halogen Lamp 2000W Low Consumption Lamp (CFL) 2500W LED 900W

Conductor Cross Section Solid Core

4mm²

Max. Load Capacity

Resistive Load 16 A Inductive Load 4 A

Depth 90mm	Height 66mm	Weight 0.072kg
Width 17.5mm	Width in No. of Modular Spacing 1

Storage Temperature

-20°C to 60°C

Operating Temperature

-10°C to 45°C

IP Rating

Housing IP20

No. of Channels

Standards and Approvals

REACH, RoHS, EN 60730-2-7, CE

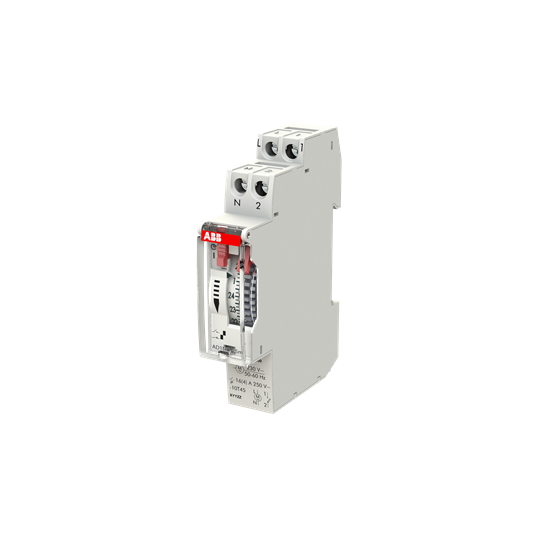

ABB AD1NO-15M Analog Time Switch W/Reserve 1NO 230V Captive Screw Terminal
