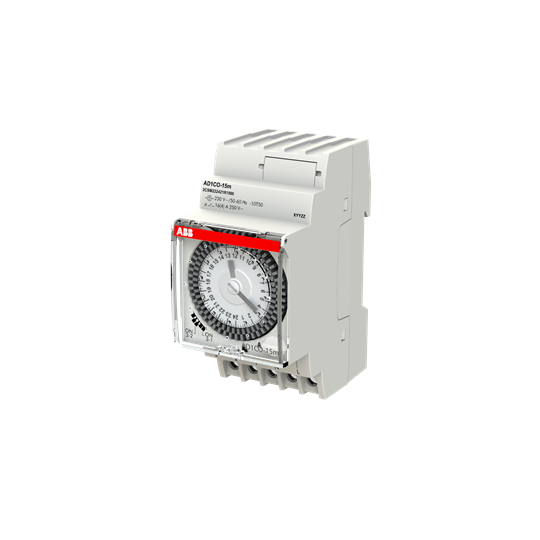

ABB AD1CO-15M Analog Time Switch 1CO 230V Captive Screw Terminal

Product Code: AD1CO-15M

  • Rated voltage of 230V, suitable for standard use
  • Multiple power ratings: 4000W, 2500W, 1200W
  • Operates on both 50 and 60 Hz frequencies
  • Easy DIN rail mounting with captive screw terminals
  • Complies with EN 60730-2-7 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Timer
Brand
ABB
Series
AG

Electrical

Function
Daily
Contact Type
Change-Over (CO)
Rated Operational Voltage (Ue)
230V
Accuracy
Operating accuracy: ± 1 second/day at 23°C Switching accuracy: ± 5 minutes
Power Loss
Total 0.5W
Minimum Switching Time
15 min
Max. Switching Power
4000W Incandescent Lamp or Halogen High Voltage Lamps 2500W Fluorescent Lamp 1200W Low Voltage Halogen Lamp 2000W Low Consumption Lamp (CFL) 2500W LED 900W

Mechanical

Conductor Cross Section Solid Core
4mm²
Max. Load Capacity
Resistive Load 16 A Inductive Load 4 A

Dimensions & Physical Data

Depth
88mm
Height
66mm
Weight
0.112kg
Width
44mm
Width in No. of Modular Spacing
2.5

Environmental

Storage Temperature
-20°C to 70°C
Operating Temperature
-10°C to 50°C
IP Rating
Housing IP20

Communication & Control

No. of Channels
1

Safety, Standards & Compliance

Standards and Approvals
REACH, RoHS, EN 60730-2-7, CE
